PARKER TE series motor Aftermarket center feed drive motor for draper headers

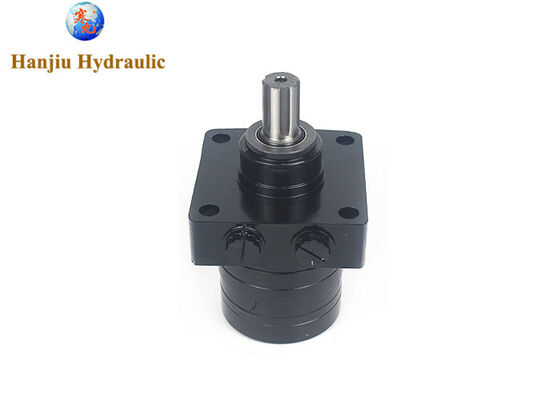

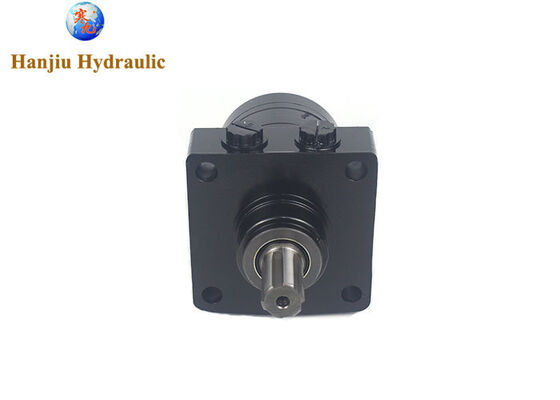

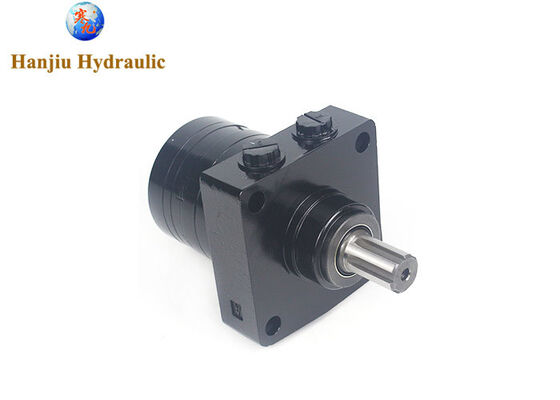

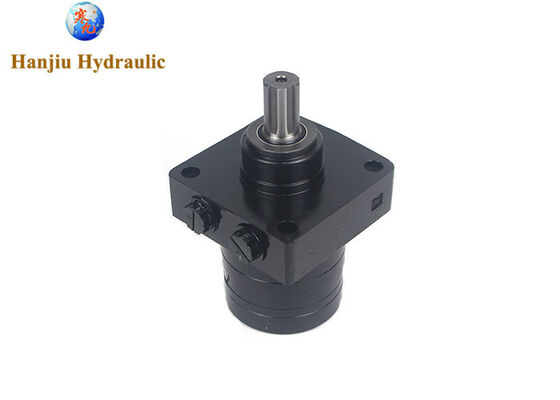

Large Image : PARKER TE series motor Aftermarket center feed drive motor for draper headers

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	BME2-65

Payment & Shipping Terms:

Minimum Order Quantity:	30 Sets
Price:	Negotiable
Packaging Details:	Carton Packing and finally with a Tray, or Wooden Box
Delivery Time:	20-25 work days
Payment Terms:	L/C,T/T
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Type:	High Torque Hydraulic Motor	Max Speed:	724rpm-924rpm
Displacement:	65cc	Warranty:	12-18 Months
Application:	Drape Belt	Torque:	295N.M-5445N.M
Flow:	75--95 L/MIN	Material:	Cast Iron
Highlight:	PARKER TE series hydraulic motor , aftermarket draper header motor , center feed drive hydraulic motor

PARKER TE series motor Aftermarket center feed drive motor for draper headers

HANJIU Technology produce the hydraulic motor BME2 series torqmotor used on Macdon CA20 & CA25 combine adaptors and CNH draper headers.

Part numbers:

Macdon 133615, 245122,
Case-IH 47677821, 51588696, 7627787

Fitment

Center feed belt motor

Models:

Brand	Models	Serial/Years
Macdon Combine Adaptors	CA20, CA25, FM100
Macdon D Series	D50, D60, D65 with CA20 or CA25 combine adaptor	After 174610-
Macdon FD Series	FD70, FD75 with CA20 or CA25 combine adaptor	After 174610-
Macdon D1 Series	D1 All Widths with FM100 float module	All
Case	2142, 2152, 2162 (09/06 - 11/11)	After Y7ZN00301-
New Holland	82C, 83C, 86C 82C, 83C, 84C, 86C	All

Details as below:

Parker TE Serie=HANJIU BME2
Wheel mount
65cc 4.0ci
Wheel mount
1" 6B Splined shaft
Side ports 2x7/8-14 UNO
Standard rotation

Main Specifications:

Type		BME2	BME2	BME2	BME2	BME2	BME2	BME2	BME2	BME2	BME2	BME2
Type		65	80	100	125	160	200	230	250	295	315	375
Geometric displacement		66.8	81.3	101.6	127	157.2	193.6	226	257	287.8	314.5	370
(cm3 /rev.)		66.8	81.3	101.6	127	157.2	193.6	226	257	287.8	314.5	370
Max. speed (rpm)	cont.	667	543	439	350	283	229	247	216	296	178	152
Max. speed (rpm)	int.	842	689	553	441	355	289	328	287	254	235	199
Max. torque (N*m)	cont.	126	157	191	245	307	382	378	381	393	448	439
Max. torque (N*m)	int.	176	215	268	335	422	520	528	543	547	587	613
Max. output (kW)	cont.	8.3	8.8	7.9	8.9	8.9	9	9.9	9.3	8.7	8	7.6
Max. output (kW)	int.	13.9	14.4	13.5	14.1	15.6	15.7	17.9	16.5	15.6	14.3	14
Max. pressure drop (MPa)	cont.	14	14	14	14	14	14	12	11	10	10	9
	int.	19	19	19	19	19	19	16.5	15.5	14.5	13.5	12.5
	peak	20	20	20	20	20	20	18	18	17	16	16
Max. flow (L/min)	cont.	45	45	45	45	45	45	57	57	57	57	57
Max. flow (L/min)	int.	57	57	57	57	57	57	75	75	75	75	75
