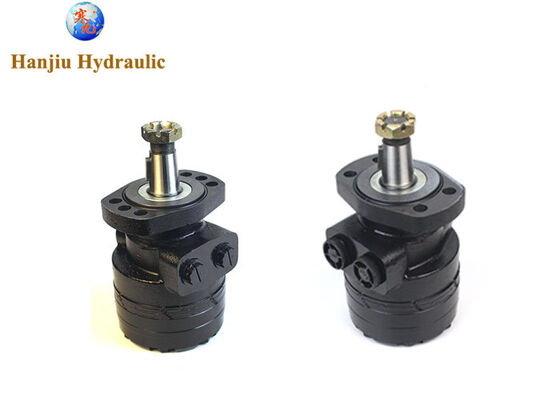

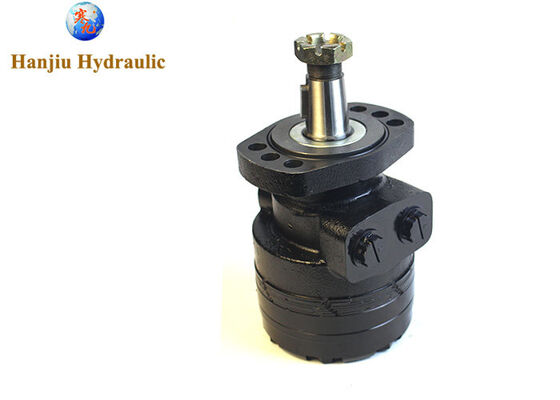

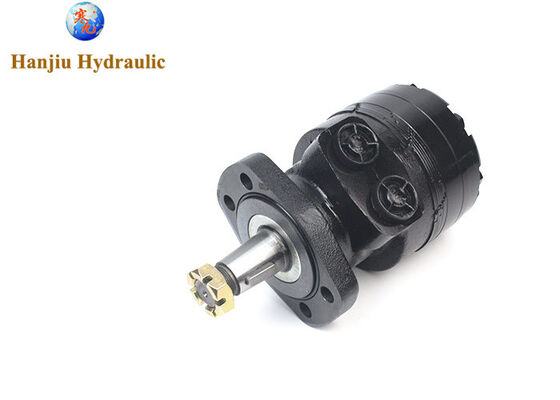

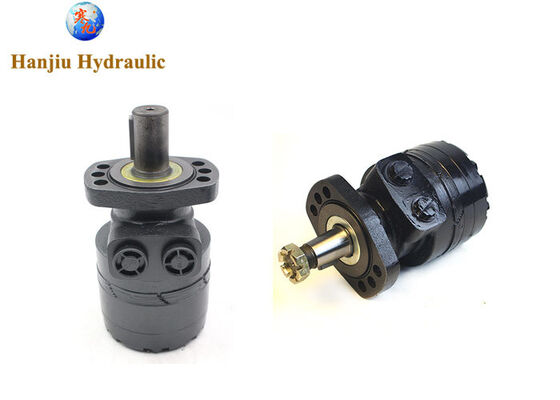

High Torque REEL Hydraulic Motor for MacDon, CaseIH, NH fronts, 143088, 273258, 273078

Large Image : High Torque REEL Hydraulic Motor for MacDon, CaseIH, NH fronts, 143088, 273258, 273078

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE, ISO9001
Model Number:	BMER-2

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pieces
Price:	160 usd/pc
Packaging Details:	box, pallet
Delivery Time:	35 - 45 work days
Payment Terms:	T/T,Western Union
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Product:	Low Speed High Torque Hydraulic Motor	Model No.:	BMER-2
Size:	15.9	Flange:	Magneto Mount 4-Hole
Shaft:	Tapered Shaft	Rotation:	CCW
Port:	Offsite Ports	Material:	Cast Iron
Highlight:	High Torque REEL Hydraulic Motor for MacDon , CaseIH compatible hydraulic motor , NH fronts hydraulic motor with warranty

High Torque REEL Hydraulic Motor for MacDon, CaseIH, NH fronts, 143088, 273258, 273078

Product details

Product	Low Speed High Torque Hydraulic Motor
Model No.	BMER-2 series motor
Displacement	15.9
Flange	Magneto Mount 4-Hole
Shaft	1-1/4" tapered shaft & nut
Rotation	CCW
Port	7/8-14UNF

Technical Specifications

Type	BMER 125	BMER 160	BMER 200	BMER 230	BMER 250	BMER 300	BMER 350	BMER 375	BMER 475	BMER 540	BMER 750
Geometric displacement (cm3/rev.)	118	156	196	228	257	296	345	371	462	540	745
Max. speed (rpm) cont.	360	375	330	290	290	250	220	200	160	140	100
Max. speed (rpm) int.	490	470	425	365	350	315	270	240	195	170	120
Max. torque (N•m) cont.	325	eca450	530	625	700	810	905	990	1085	980	1050
Max. torque (N•m) int.	380	525	600	710	790	930	1035	1140	1180	1240	1180
Max. torque (N•m) peak	450	590	750	870	980	1120	1285	1360	1260	1380	1370
Max. output (kW) cont.	12.0	15.0	15.5	16.0	17.5	18.0	17.5	16.5	14.5	11.5	8.0
Max. output (kW) int.	14.0	17.5	18.0	19.0	20.0	21.0	20.0	19.0	16.5	10.0
Max. pressure drop (MPa) cont.	20.5	20.5	20.5	20.5	20.5	20.5	20.5	20.5	17.5	14	10.5
Max. pressure drop (MPa) int.	24	24	24	24	24	24	24	24	19	17.5	12
Max. pressure drop (MPa) peak	27.6	27.6	27.6	27.6	27.6	27.6	27.6	27.6	20.5	20.5	14
Max. flow (L/min) cont.	45	60	70	70	75	80	80	75	75	75	75
Max. flow (L/min) int.	60	75	85	85	90	95	95	90	90	90	90

Super Heavy Duty High Torque Hydraulic Motor to operate REEL BAT Application on -

Macdon - D50, D60, D65, D125, D130, D135, D140, D145, FD70, FD75, FD125, FD130, FD135, FD140, FD145, D225, D230, D240, D241, D245, D250, FD225, FD230, FD235, FD241, FD245, FD250 OEM# 143088, 273258, 273078
Case - 2142, 2152, 2162 (09/06 - 11/11) , OEM# 87561181, 87627788
New Holland - 82C, 83C, 84C, 86C

Roller stator motor

Cross Reference: CM143088, 87561181, 143088, 87627788, 273258, 273078
