Product Details:
Payment & Shipping Terms:
|
| Products Name: | Loader Control Valve | Model No.: | 2P40 |
|---|---|---|---|
| Warranty: | Come With 1 Year Warranty | Spool: | 2 |
| Flow: | 40 Liters/ Min | Rated Pressure: | 16 MPa |
| Spool Function: | 'O' | Position: | 'T' |
| P,T,N: | 1/2' BSP | A, B: | 3/8' BSP |
| High Light: | hydraulic monoblock valves,hydraulic directional valve |
||

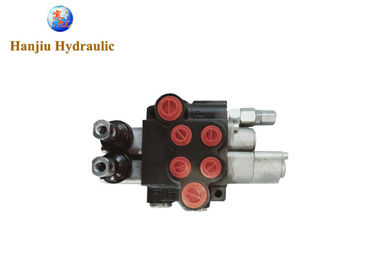

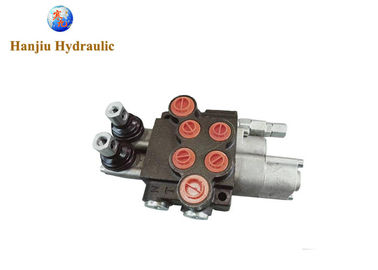

Float Function 2 Spool 40 liters monoblock valves 3/8'' spring return
We are professional manufacturer to produce Hydraulic Monoblock and Sectional Directional Control Valves to suit hydraulic systems of agricultural, forestry, construction, minging, transport, industrial, drilling machine, sanitation and many more
We have many options for the monoblock and sectional types
It's available from 40 liters - 200 liters, and upto 1 spools are also provided by us
Also manual, joystick, cable, pneumatic, solenoid, electro-pneumatic, electro-hydraulic control types
| Ambient temperature | -40C...+60C |
| Viscosity | 12 ...800 mm2/s |
| Fluid temperature | -15C...+80C |
| Filtration | 10 to NAS 1638 |
| Max operating pressure | 315 bar |
| Back pressure | 50 bar |
| Nominal flow | 40 l/min |
| Leakage(A,B-T) | 15cm3/min at 120bar |
| Spool stroke | +/-7 mm |
| Actuating force | < 200 N |
| Modification/ Spools | 1 to 8 |
| Monoblock valve | Flow | Nom. Pressure | Spool |
| P40 | 40L/Min |
E 16 MPa F 20 MPa |
1 |
| P40 | 40L/Min |
E 16 MPa F 20 MPa |
2 |
| P40 | 40L/Min |
E 16 MPa F 20 MPa |
3 |
| P40 | 40L/Min |
E 16 MPa F 20 MPa |
4 |
| P40 | 40L/Min |
E 16 MPa F 20 MPa |
5 |
| P40 | 40L/Min | 6 | |
| P80 | 80L/Min |
E 16 MPa F 20 MPa |
1 |
| P80 | 80L/Min |
E 16 MPa F 20 MPa |
2 |
| P80 | 80L/Min |
E 16 MPa F 20 MPa |
3 |
| P80 | 80L/Min |
E 16 MPa F 20 MPa |
4 |
| P80 | 80L/Min |
E 16 MPa F 20 MPa |
5 |
| P80 | 80L/Min |
E 16 MPa F 20 MPa |
6 |
| P120 | 120L/Min |
E 16 MPa F 20 MPa |
1 |
| P120 | 120L/Min |
E 16 MPa F 20 MPa |
2 |
| P120 | 120L/Min |
E 16 MPa F 20 MPa |
3 |
| P120 | 120L/Min |
E 16 MPa F 20 MPa |
4 |
| P120 | 120L/Min |
E 16 MPa F 20 MPa |
5 |
| P120 | 120L/Min |
E 16 MPa F 20 MPa |
6 |
