Product Details:
Payment & Shipping Terms:
|
| Type: | DCV Hydrauic Valve | Structure: | Sectional |
|---|---|---|---|
| Nominal Flow: | 200 Liters/min Or 52.5 Gpm | Max Pressure: | 350bar Or 5076 Psi |
| Operating Range: | 15 - 75 Cst | Temperature Range: | -40 °C ~ 80 °C |
| Inlet: | G 1/2 | Outlet: | G 1/2 |
| Working Ports: | G 1/2 | Control: | Manual |
| High Light: | hydraulic control valve,hydraulic monoblock valves |
||

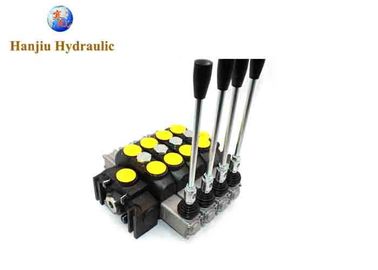

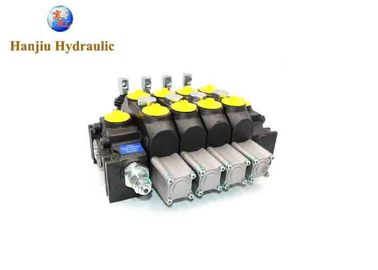

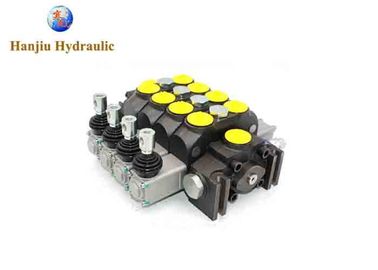

4 lever 200 liters Directional Control Valve with releif valve for Truck Mounted Cranes
Quick details of DCV200-4
| Nominal flow rate | 200 l/min 52.5 US GPM |
| Max. pressure | 350 bar 5076 psi |
| Operating range | 15 - 75 mm2/s |
| Ambient temperature range | -40 °C ~ 80 °C |
| Structure | Sectional (1-12 sections) |
Directional control valves (DCVs) are one of the most fundamental parts of hydraulic and pneumatic systems. DCVs allow fluid flow (hydraulic oil or air) into different paths from one or more sources. DCVs will usually consist of a spool inside a cylinder which is mechanically or electrically actuated. The position of the spool restricts or permits flow, thus it controls the fluid flow
Hanjiu customizes and designs products for different kinds of companies: Hydraulic Resellers, Hydraulic Distributors, Hydraulic Machines Manufacturers, Hydraulic Training, Hydraulic Fluid Tech Research, Hydraulic Repairing, Fluid Power Manufacturers, Hydraulic Systems Solutions, Fluid Power Solutions etc.
Available manual, pneumatic control, electric and pneumatic control ,hydraulic and electric control.
PARAMETERS
| Nom. Pressure (MPa) |
Max.Pressure (MPa) |
Nom. Flow rate (L/min) |
Back Pressure(MPa) |
hydraulic oil | ||
| Tem.rang (ºC) |
Visc.rang (mm2/S) |
filtrating accuracy (μm) |
||||
| 35 | 31.5 | 200 | ≤1 | -40~+80 | 10~400 | ≤10 |
| Flow rate | 200l/min |
| Spool function | Cylinder, motor spool, single acting |
| Thread | G1/2 |
| Control way | Spring Control |
| Max pressure | 315bar. |
| Spool diameter | 16mm |
| DCV valve | Flow | Nom. Pressure | Spool |
| DCV 20 | 20L/Min |
100 ~315 BAR |
1-12 sections |
| DCV 40 | 40L/Min |
100 ~315 BAR |
1-12 sections |
| DCV 45 | 45L/Min |
100 ~315 BAR |
1-12 sections |
| DCV 60 | 60L/Min |
100 ~315 BAR |
1-12 sections |
| DCV 100 | 100L/Min |
100 ~315 BAR |
1-12 sections |
| DCV 140 | 140L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 200 | 200L/Min |
100 ~315 BAR |
1-12 sections |
Application:
This product is applicable to special vehicles like truck mounted crane, wrecker, scrubbing machine and dynamic compactor and can effectively control such actuating mechanisms like motor and oil cylinder.
Over 10 years in the market, providing all HYDRAULIC Solutions.
Mission: Our mission is to optimize solutions for our customers, aiming to satisfy and exceed their needs, acting in a transparent and socially responsible manner. Achieve profitability for the development of the company and contribute to the quality of life, progress and professional success of its employees.
Vision: The main focus of the company is to anticipate trends, offering services and products that exceed customer expectations and demands and ensure that loyalty is made in a natural, consistent and coherent manner, demonstrating commitment, quality and agility in our service. Constantly improving our performance in the competitive market so that in the future we can with technology improve our knowledge and make this tool our differential.
More related hydraulic items for hydraullic systems
Please send your inquiry to ask the best quote
