Product Details:
Payment & Shipping Terms:
|
| Model No.: | HSV6-A 1-Spool | Spool: | 1 Spool |
|---|---|---|---|
| Nominal Pressure:: | 25MPa (3625 PSI) | Max Flow:: | 50L/MIN |
| Oil Port:: | 7/8-14UNF | Voltage:: | DC12V, 3-plug |
| Country/Region Of Manufacture:: | China | Brand:: | Hanjiu |
| High Light: | 13 gpm Directional Control Valve,12v dc Directional Control Valve |
||

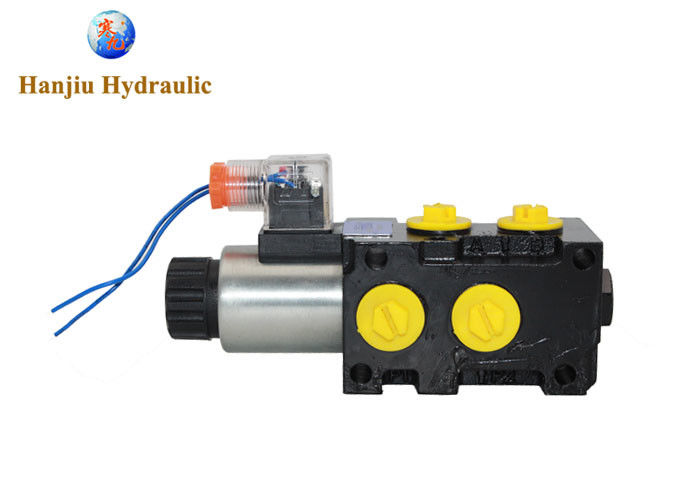

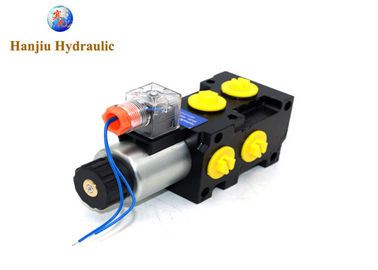

HSV 6-A - Hydraulic Selector Diverter Solenoid Valve - 13 GPM 12V DC
Quick Review:
Model: HSV6-A, 1-Spool
Max Flow: 50LPM
Flow Rating: 13 GPM
Nominal Pressure: 25MPa (3625 PSI)
Voltage: DC12V, 3-plug
Oil Port: 7/8-14UNF
6 Ports with #10 SAE (3/4"-16) Thread
Package size: 23×16×13cm
Gross weight: 3kg
| parameter | value |
| Number of Work Sections | from 1 to 3 |
| Max working pressure | 315 bar |
| Operating pressure | 210 bar |
| Rated flow | 50 l / min |
| Working temperature | from -30 ° С to + 50 ° С |
| Fluid viscosity | from 20 to 400 mm 2 / s |
| Fluid temperature | from -20 ° С to + 70 ° С |
| Filtration | Grade 9 NAS1638 |
| Supply Voltage / Power Consumption | 12VDC * / 36W and 24VDC * / 29W |
| Switching frequency max | 15,000 times per hour |
| Duty cycle | one hundred% |
Description:
HSV6 series selection valve can be realized in the different flow pressure between the oil road switch.
Multiple directional valves can be connected to feed oil into or out of different devices. Can also be connected to the oil pump, the hydraulic oil to two different oil routes.
Ordering code
HSV6---X---X---X---X
1 2 3 4 5
1.series code
2.Model type: A/B/C
3.Number of sections:1-3( Model A,B available for stack)
4.Ports size
| Code | Port Thread size |
| P1 |
G1/2
|
| P2 |
G3/8
|
| P3 |
7/8-14UNF |
5.Solenoid type
Model type
type A
Type B
Type C
Features:
