Product Details:
Payment & Shipping Terms:
|
| Item: | Direction Control Valve | Model: | DCV |
|---|---|---|---|
| Spool: | 4 | Control Type: | Standard Handel |
| Spool Type: | Open Center With Cylinder Spools | Spool Return Type: | Spring Return |
| High Light: | 4 section open center directional valve,cylinder spools directional valve,spring center handles directional valve |
||

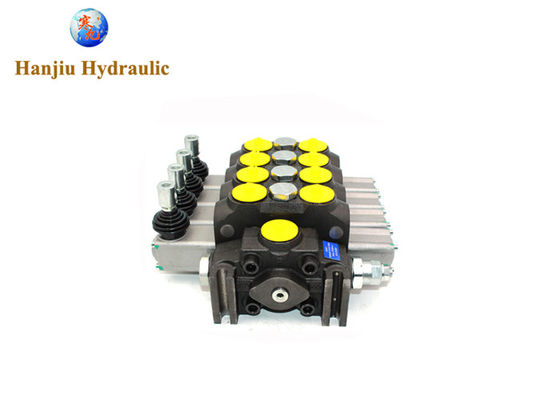

Direction Control Valve 4 Section Open Center with Cylinder spools, Spring center handles
Model: DCV100/4
This sectional valve is a hydraulic directional control valve. These valves are used to start and stop fluid flow into hydraulic cylinders
Common Uses:
Operate hydraulic cylinders (Double-Acting )
Benefits:
4 Spool valve with compact design allows for installations in tight areas
All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders
Used for open center systems (Pump to Tank Flow) – closed center option available
Precision ground and hard chrome-plated spools assure a long life
High-tensile strength cast iron sectional construction
SAE O-Ring ports ensure solid seal and prevent blockages
Capable of closed center or Power Beyond (conversion plug required)
Adjustable Relief Valve Range: 1500 to 3625 PSI
Preset Pressure Relief: 2610 PSI
Features:
Flow Rating: 26.2 US GPM (100 l/min)
A & B Work Ports:1 1/16 UNF Thread
Inlet Port: 1 1/16 UNF Thread
Outlet Port: 1 1/16 UNF Thread
Made by Hanjiu
