| Model No.: | 3P40 | Warranty: | 1year |
|---|---|---|---|
| Spool: | 1, 2, 3, 4, 5, 6, ... | Flow: | 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ... |
| Spool Function: | Detent Return | Control Type: | Standard Handle |
| High Light: | Eaton hydraulic directional control valve,vickers hydraulic directional control valve,vickers hydraulic control valves |
||

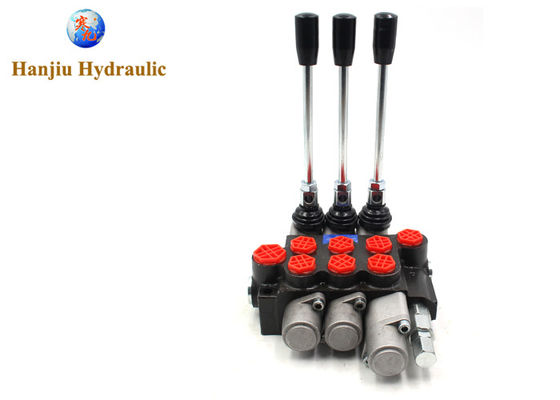

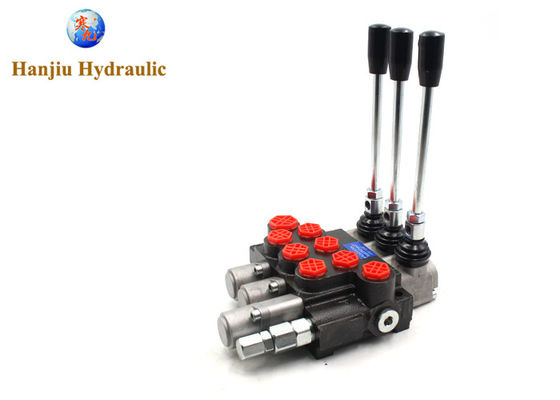

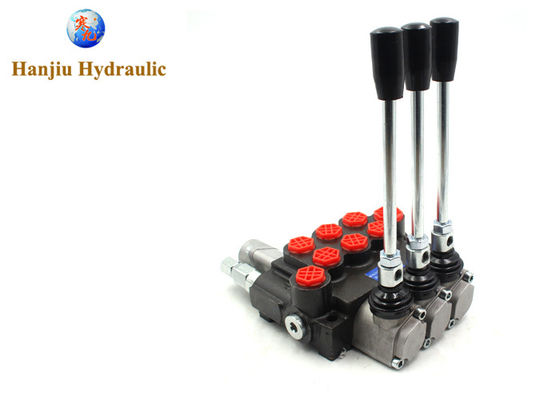

This type is our hydraulic directional valve, 40liters, with 3 spools---3P40F-YW-OT
the function as below:
1-2 spools: spring return, 3 position 2 acting
the 3th. spool : detent return, 3 position 2 acting
Pressure:20mpa
Manually or mechanically controlled hydraulic directional control valve Р40 is designed for distribution and control of work flow between generator (pump) and executive mechanisms (cylinder, hydro-motor, etc.). It is manufactured with 1 to 7 plungers, with parallel or serial action, with common or individual back valve for each plunger, with or without safety valve.
|
1, Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be returned.
|
|
2, Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure. |
|
3, Oil way: Parallel circuit, power beyond option |
|
4, Control Way: Manual control, pneumatic control, hydraulic and electric control for optional. |
|
5, Valve construction: monoblock construction, 1-7 levers. |
|
6, Spool Function: O,Y, P,A. |
|
7, Option: Hydraulic lock is available to be added on A and B port. |
|
8, Available with manual, pneumatic control, electric and pneumatic control, hydraulic and electric control and etc.
|
