Product Details:
Payment & Shipping Terms:
|
| Model No.: | DCV100-2 | Warranty: | 1year |
|---|---|---|---|
| Spool: | 1, 2, 3, 4, 5, 6, 7,8,9,10,11,12... | Flow: | 60lt, 80lt, 100lt, 120lt, 140lt,200lt ... |
| Spool Function: | Manual,electric-hydraulic,air -hydraulic | Pressure: | 315bar |
| High Light: | 100liters electric joystick hydraulic control valve,315bar electric joystick hydraulic control valve,2 spool joystick hydraulic control valve |
||

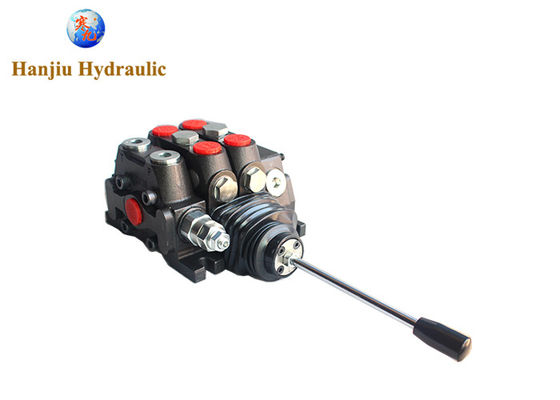

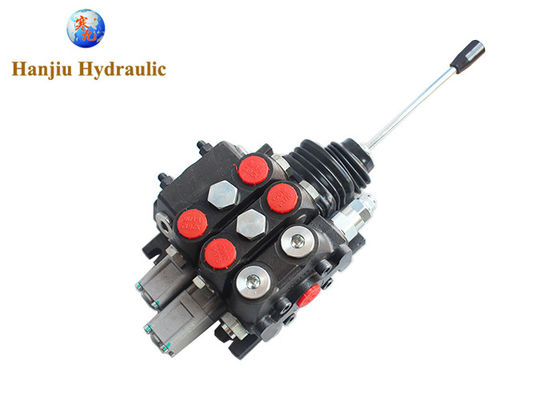

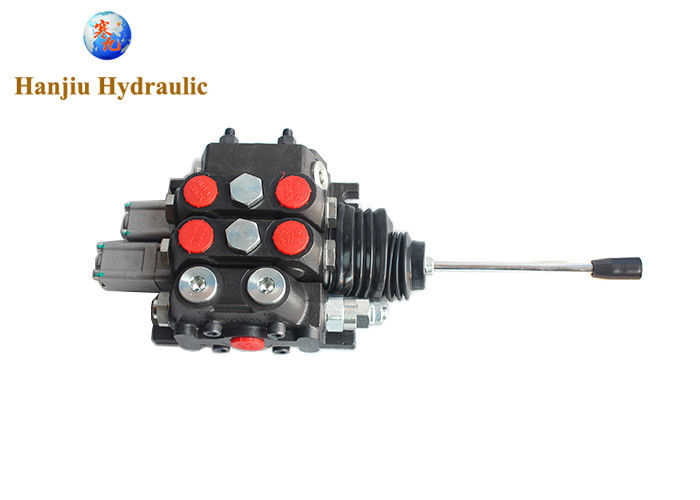

joystick directional control valve 100 liters 2 spool joystick hydraulic control valve
Sectional Directional Control Valves are available with 1 to 10 sections and 3/8"", 3/4"" or 1/2"" ports.
Therefore, this is ensuring you will find one that best meets your requirements.
It presents a nominal flow rate from up to 120 l/min and maximum operating pressure of 350 bar.
Furthermore, the hydraulic directional control valve is also available with manual, cable, pneumatic, hydraulically and electro-hydraulically spool controls.
|
Norminal Flow
|
100L/min
|
|
Max Flow
|
100L/min
|
|
Max Pressure
|
315mpa
|
|
Control Type
|
manual, pneumatic, hydraulic, electro-hydraulic
|
|
Allowed back pressure
|
≤1 mpa
|
|
Oil port size
|
customizable
|
oil ports
spool functional
