Product Details:
Payment & Shipping Terms:
|
| Model No.: | 2P120 | Warranty: | 12-18 Months |
|---|---|---|---|
| Spool: | 1, 2, 3, | Flow: | 40lt, 45lt, 60lt, 80lt, 100lt, 120lt, 140lt, ... |
| Function: | O/Y/P/A | Application: | Hydraulic System,excavators,trenchers... |
| High Light: | 2p120 hydraulic monoblock valve,2 spool hydraulic monoblock valve,2p120 monoblock directional control valve |
||

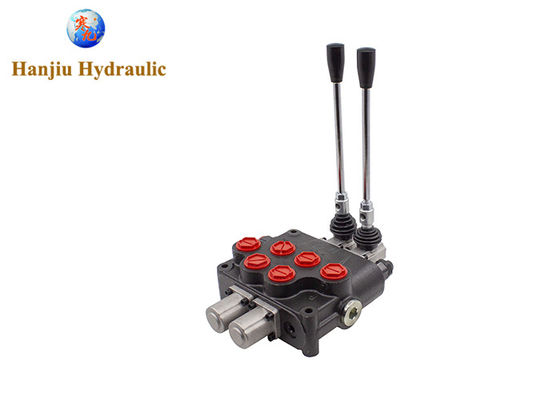

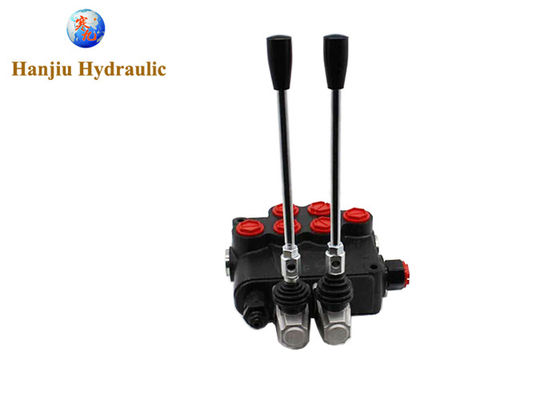

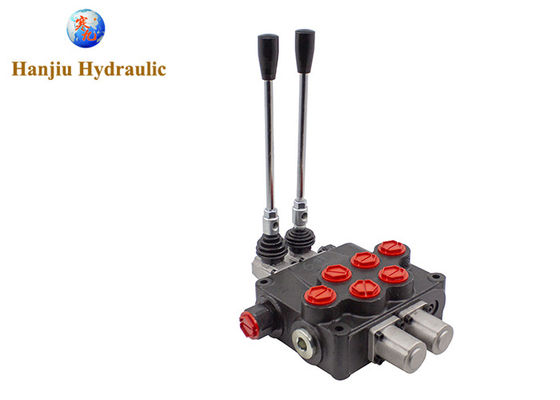

Hydraulic Monoblock Valve P120 A1 GKZ1 2spool Section Valves Spring Return
Product details
3/4" Ported Double Acting 1 Bank Monoblock Valve
Built in Adjustable Main relief valve
Nominal Flow Rating - 120L/Min
Max Flow - 130L
Max Operating Pressure - 250 Bar - 3600 Psi
Spring Return To Neutral
| Ambient temperature | -40C...+60C |
| Viscosity | 12 ...800 mm2/s |
| Fluid temperature | -15C...+80C |
| Filtration | 10 to NAS 1638 |
| Max operating pressure | 250 bar |
| Back pressure | 50 bar |
| Nominal flow | 120 l/min |
| Leakage(A,B-T) | 15cm3/min at 120bar |
| Spool stroke | +/-7 mm |
| Actuating force | < 200 N |
| Modification/ Spools | 1-3 |
We have a diverse range of products to help with any area of your needs in the field of Hydraulics.
HANJIU TECHNOLOGY has a complete production line and mature manufacturing technology, which can ensure that every customer's order can be efficiently and quality output. If you don't know how to choose the type of hydraulic directional control valve, or want to know about the product use process and installation procedure, you can check the relevant information on our official website www.hjhydraulic.com.
HANJIU TECHNOLOGY is committed to building a first-class brand of hydraulic components at home and abroad. Choose HANJIU TECHNOLOGY to equip your hydraulic system with the most advanced and high-quality hydraulic components!
