Product Details:
Payment & Shipping Terms:
|
| Model No.: | HSDS15 | Warranty: | 12-18 Months |
|---|---|---|---|
| Spool: | 1, 2, 3, 4, 5, 6, ... | Flow: | 16GPM |
| Spool Function: | O/Y/A | Control Type: | Spring Return,detent Return |
| High Light: | bucher section directional control valve,manually operated directional control valve,double acting manual directional control valve |
||

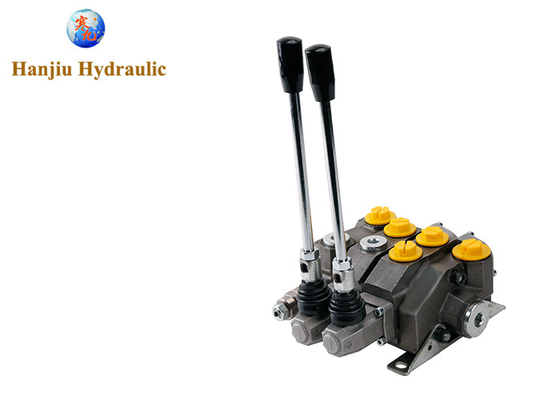

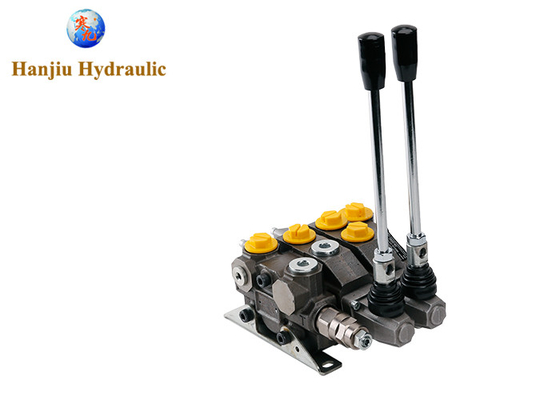

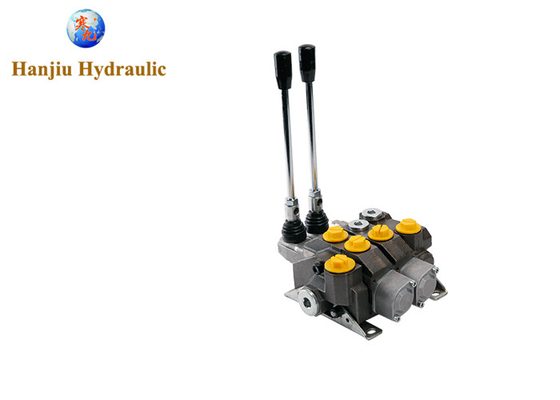

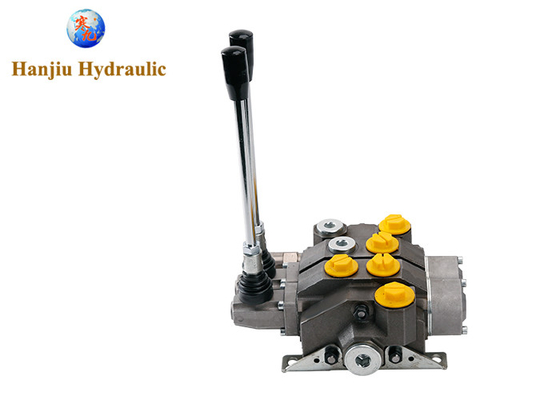

we supply section hydraulic vlaves HSDS15,matching Bucher HDS15 valves,
with lever control, cable control,solenoid controls, pneumatic controls...
Product details
| Ambient temperature | -40°C...+80°C |
| Viscosity | 12 ...400 mm2/s |
| Fluid temperature | -40°C...+80°C |
| Filtration | 10 to NAS 1638 |
| Max operating pressure | 315bar |
| Back pressure | 50 bar |
| Nominal flow | 60 l/min |
| Leakage(A,B-T) | 15cm3/min at 120bar |
| Spool stroke | 6 mm |
| Actuating force | < 200 N |
| Structure | with 1 to 12 |
The HDS series valves represent flexible unit structures that can be configured to form a valve in 8 different sizes, series, parallel, series/parallel, flow sharing, or load sensitive circuits. In addition, the valve includes inlet and intermediate flow control links that can be operated manually or electrically proportionally. Widely used in forestry machinery, vehicle lift and municipal machinery.
