Product Details:
Payment & Shipping Terms:
|
| Model No.: | RD5200 | Warranty: | 12-18 Months |
|---|---|---|---|
| Spool: | 1, 2, 3, 4, 5, 6, ... | Flow: | 25GPM |
| Spool Function: | O/Y/A | Control Type: | Monoblock Control Valve |
| High Light: | 522gcga5a4b1 directional control valve,two spool directional control valve,two spool monoblock directional control valve |
||

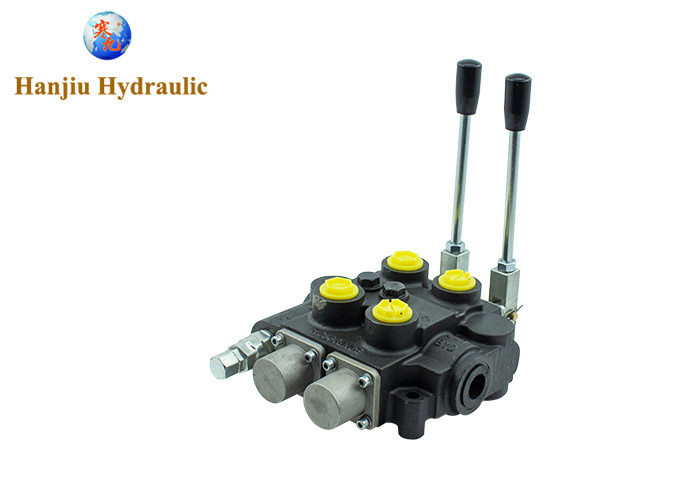

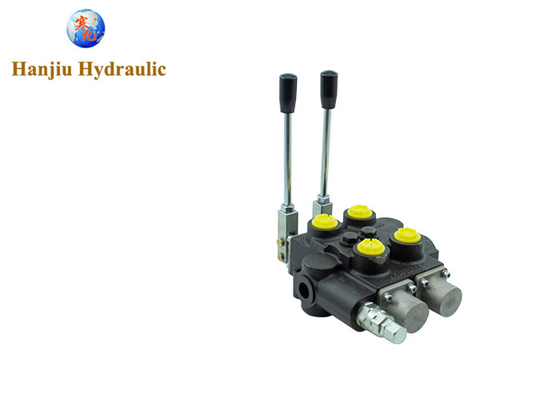

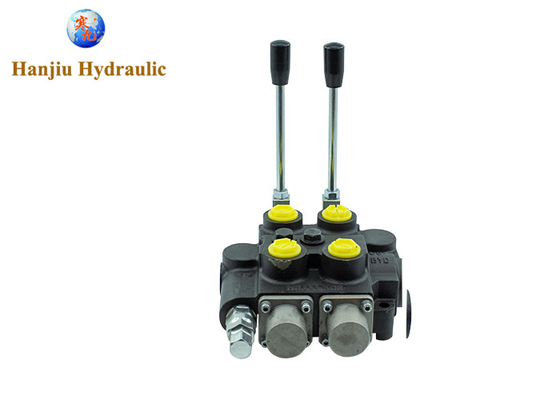

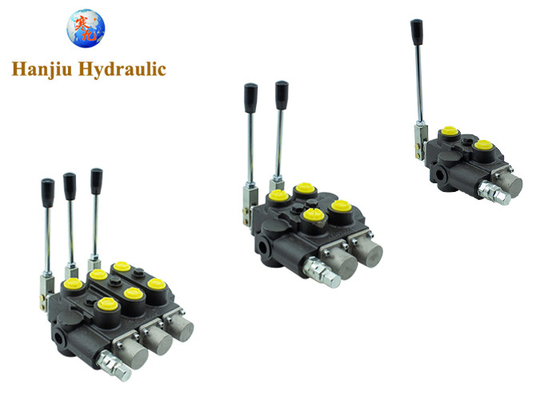

Hanjiu hydraulic supply the RD5100/RD5200/RD5300 Series direction control valves
matching Prince valves,fit for US market, excellent quality
SPECIFICATIONS
Open Center
Spools Two
Flow 25 GPM max.
Pressure 3000 PSI max.
Relief Valve factory set at 2000 PSI Adjustable 1500-3000 PSI
In/Out Ports 3/4" NPT
Work Ports 1/2" NPT
Mount 3 holes thru body
Size 9-1/2" x 7-1/2" x 3-1/4"
Shpg. 25 lbs.
Spool Details:
Spool 1 Double acting spring centered
Spool 2 Double acting spring centered
| Ambient temperature | -40°C...+80°C |
| Viscosity | 12 ...400 mm2/s |
| Fluid temperature | -15C...+80C |
| Filtration | 10 to NAS 1638 |
| Max operating pressure | 315bar |
| Back pressure | 50 bar |
| Nominal flow | 25gpm |
| Kick out set pressure | 70-140bar |
| Modification/ Spools | with 1 to 7 |
STANDARD FEATURES Economical monoblock construction of high tensile strength gray cast iron. Load check on each spool Hard Chrome Plated Spools Optional 4 Position Float and Joystick Handle Differential poppet style relief, adjustable from 1500 to 3000 psi (also available in low pressure version adjustable from 500 to 1500 psi) Power beyond and closed center capability Reversible Handle Solenoid Actuated Option Available Optional 4 Position Float and Joystick Handle Ideal for loader application
Valve
Hand valve
Control valve
Regulating valve
Non-return valve
Lever control valve
Directional control valve
Oil valve
Flow control valve
Fluid check valve
Hydraulic directional control valve
Relief valve
Spool hydraulic directional control valve
Ball non-return valve
Hydraulic non-return valve
Manual hydraulic directional control valve
Pilot-operated relief valve
4-way hydraulic directional control valve
1. The monoblock hydraulic control valve produced by Hanjiu Technology Co., Ltd. has a long service life. Hanjiu Technology produces at least 500,000 sets of related products every year. All products will undergo strict quality inspection before leaving the factory to ensure the quality of these products to the greatest extent. And industrial production makes the quality of these products all the same, there is no inferior product
2. The monoblock hydraulic control valve produced by Hanjiu Technology Co., Ltd. has a very high cost performance. Hanjiu Technology always insists on giving the maximum profit to the dealers, so as to ensure that customers can buy the best products at the lowest price.
3. The goal of Hanjiu Technology Co., Ltd. is to serve the world and do long-term business, so they pay special attention to after-sales service, always put customer needs first, sincerely consider and plan for customers, and encounter any problems during use You can consult customer service
