Product Details:
Payment & Shipping Terms:
|
| Item: | Diverter | Model: | HSDF5 |
|---|---|---|---|
| Founction: | 2 Way Distributor Normally Closed, Spring Cente | Spool: | 1 |
| Flow Rate: | 60 LPM | Thread: | G 3/8 BSP |
| High Light: | 2 way hydraulic valve,spring center 2 way hydraulic valve,2 way directional control valve |
||

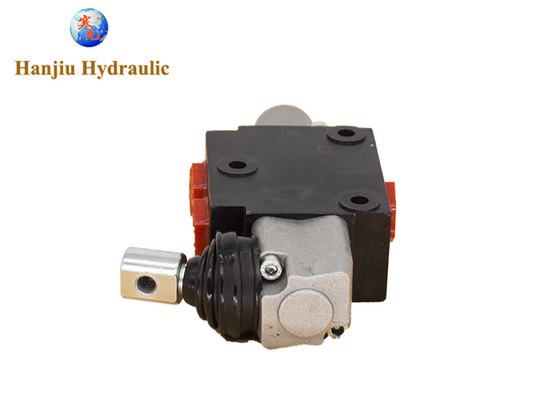

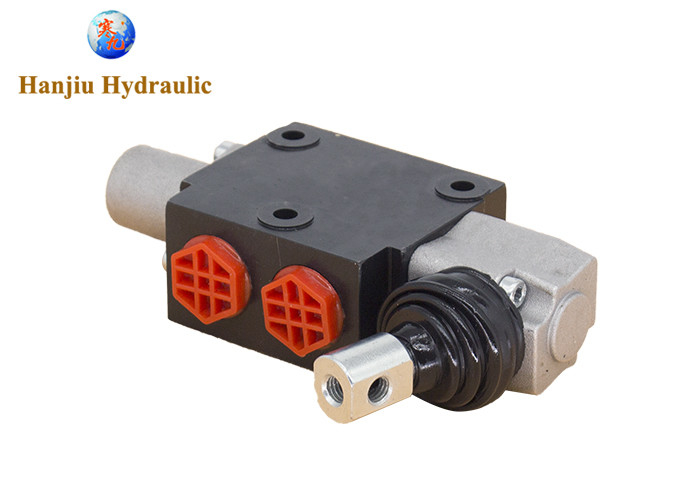

Walvoil DF5 Series Push Pull Operation Diverter 3/8", compatible type, distributor Normally closed, spring center
Quick View:
This is a Walvoil DF5 series compatible valve, has the same look, fit and functionality as the Walvoil, OEM grade, more favorable price, fast delivery. If you are importers, distributors or OEM manufacturers, welcome contact us talk details.
Specification:
| Flow rate nominal LMin | 60 lpm |
| HS code | 84818029.90 |
| Model code | HSDF5 |
| Pressure max. | 315 bar |
| Temperature ambient max. | +60 °C |
| Temperature ambient min. | -30 °C |
| Thread | G 3/8 BSP |
More series compatible type:
| DF5 | DF10 | DF20 | DF25 | ||
| Nominal flow rating | 60 l/min | 90 l/min | 140 l/min | 280 l/min | |
| Operating pressure (max) | 315 bar | 315 bar | 315 bar | 315 bar | |
| Internal leakage A(B)→T | ∆p=100 bar with fluid and valve at 40°C | 5 cm3/min | 5 cm3/min | 8 cm3/min | 8 cm3/min |
| Fluid | Mineral based oil | ||||
| Fluid temperature | with NBR seals | from -20° to 80°C | |||
| with FPM seals | from -20° to 100°C | ||||
| Viscosity | Operating range | from 15 to 75 mm2/s | |||
| Min | 12 mm2/s | ||||
| Max | 400 mm2/s | ||||
| Max level of contamination | -/19/16 - ISO 4406 | ||||
| Ambient temperature for working conditions | With mechanical control | from -40° to 60°C | |||
| With hydraulic, pneumatic control | from -30°C to 60°C | ||||
| With electric control | from -20°C to 50°C | ||||
Description:
Compatible Diverter valve Walvoil DF5
Walvoil multy way diverter valve
Walvoil 2 way diverter valve
The DF is a 2-way gate valve.
It allows the passage from P to B in neutral position and from P to A after the actuation.
The operation takes place with a manual lever that returns to the starting position through a spring return.
About the supplier:
Hanjiu is a hydraulic manufacturer and exporter from China. Hanjiu produce variety of hydraulic parts to suit range of brands & applications. We ship to all parts of the world.We introduce us as advantage supplement of your current hydraulic supply, solve reliability, quality, time, cost, brand promotion.
Hydraulic directional control valve is one of our specialties, we are good at Walvoil DF5, SD4, SD5, SD8, SD11, SD14, SD18, SD25 and other series.Below is a selection of our high-end compatible hydraulic directional control valves for Walvoil dealers and users for your reference. We also offer more hydraulic directional control valves
Welcome to contact us, send your demand list and quantity, understand our quotation, discuss cooperation.
