Product Details:
Payment & Shipping Terms:
|
| Item: | Monoblock Valve | Model: | HSSD5-2 |
|---|---|---|---|
| Bank: | 2 Bank | Flow Rate: | 45 LPM |
| Thread: | G 3/8 BSP | Function: | Cylinder Spool |
| High Light: | 2 bank directional control valve,spring return directional control valve,45 lpm monoblock valve |
||

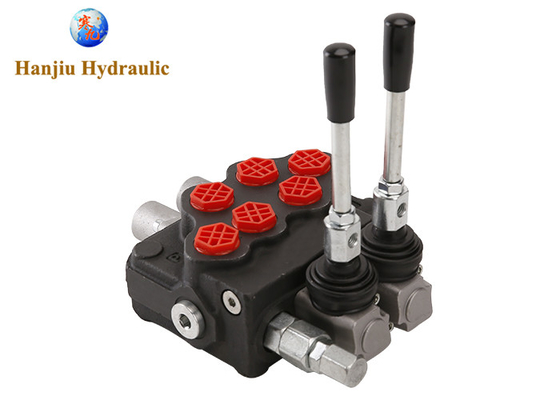

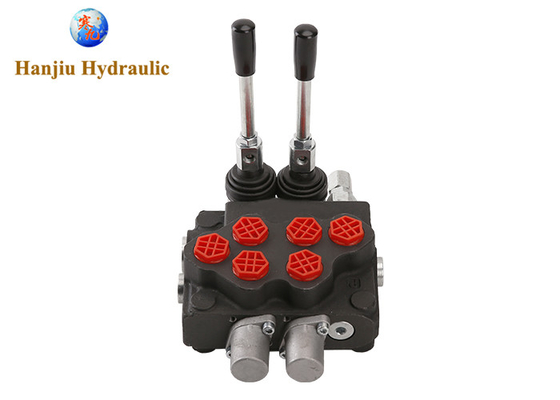

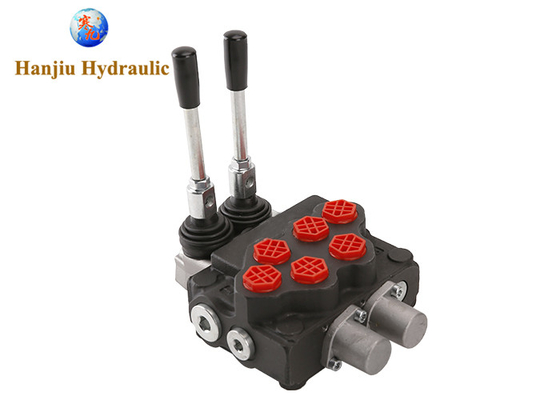

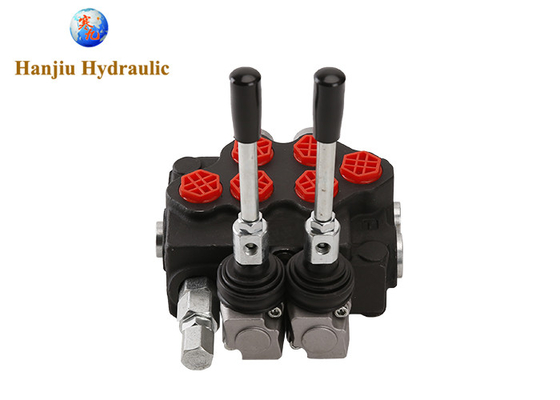

Walvoil Monoblock valve SD5 compatible, 2 Bank, Spring Return, 45 LPM
Quick View:
This is a Walvoil SD5 series compatible valve, has the same look, fit and functionality as the Walvoil, OEM grade, more favorable price, fast delivery. Walvoil 3/8" 2 Bank Directional Control Valve compatible, Lever Operated, Cylinder Spool, Spring Centre c/w Relief Valve SD5/2 . If you are importers, distributors or OEM manufacturers, welcome contact us talk details.
Specification:
| Nominal flow rating | 45 l/min | ||
| Operating pressure (max.) | parallel pr tandem circuit | 315 bar | 4600 psi |
| series circuit | 250 bar | 3600 psi | |
| Max. back pressure | on outlet port T | 25 bar | 360 psi |
| Fluid temperature | with NBR seals | from --20° to 80°C | |
| with FPM seals | from --20° to 100°C |
Description:
| Max. working pressure, | ports: P, A, B = 315 bar (parallel). 250 bar (serie). T = 25 bar. |
| Nominal flow, | Q: 45 l/min. |
| Connections (BSPP): | P, C = 3/8". A, B = 3/8". T = 3/8". |
| Max lever | 7 |
More series available:
| 1 | walvoil sd5 pdf |
| 2 | walvoil sd11 |
| 3 | walvoil loader valve |
| 4 | walvoil sd6 |
| 5 | walvoil sd4 |
| 6 | walvoil sd8 |
| 7 | walvoil sd14 |
| 8 | walvoil sd18 |
| 9 | walvoil sd25 |
| 10 | walvoil monoblock valves |
About the supplier:
Hanjiu is a hydraulic manufacturer and exporter from China. Hanjiu produce variety of hydraulic parts to suit range of brands & applications. We ship to all parts of the world.We introduce us as advantage supplement of your current hydraulic supply, solve reliability, quality, time, cost, brand promotion.
Hydraulic directional control valve is one of our specialties, we are good at Walvoil DF5, SD4, SD5, SD8, SD11, SD14, SD18, SD25 and other series.Below is a selection of our high-end compatible hydraulic directional control valves for Walvoil dealers and users for your reference. We also offer more hydraulic directional control valves
Welcome to contact us, send your demand list and quantity, understand our quotation, discuss cooperation.
