Product Details:
Payment & Shipping Terms:
|
| Item: | Solenoid Valve | Model: | HSSD5DC |
|---|---|---|---|
| Bank: | 1 Bank | Flow Rate: | 45 LPM |
| Thread: | G 3/8 BSP | Function: | Cylinder Spool |
| High Light: | walvoil solenoid operated directional control valve,walvoil control valve hydraulic,1 bank control valve hydraulic |
||

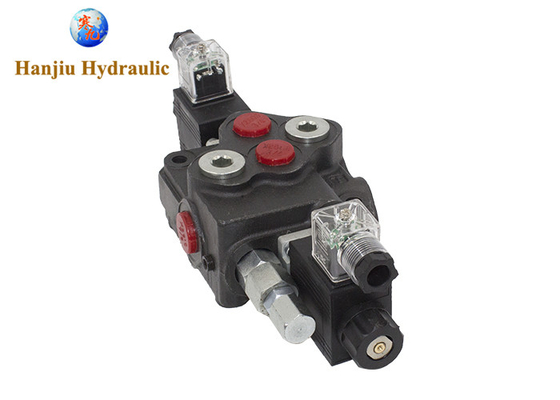

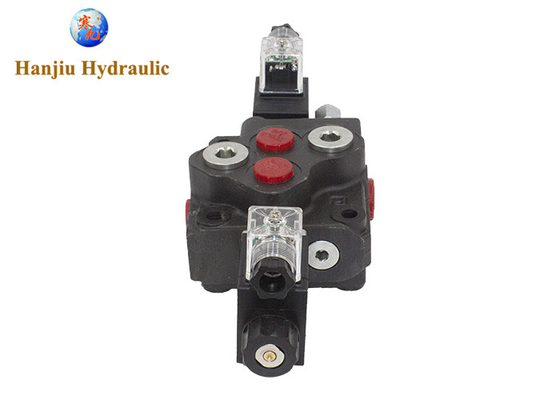

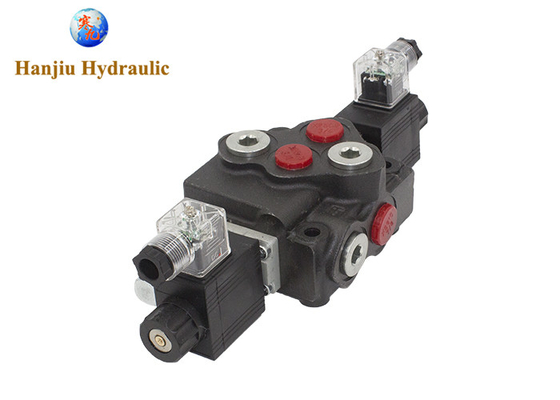

Walvoil Solenoid valve compatible, SD5/1 1 section, thread G 3/8"
Quick View:
This is a Walvoil SD5 series compatible valve, has the same look, fit and functionality as the Walvoil, OEM grade, more favorable price, fast delivery. If you are importers, distributors or OEM manufacturers, welcome contact us talk details.
Specification:
| Nominal flow rating | 45 l/min | ||
| Operating pressure (max.) | parallel pr tandem circuit | 315 bar | 4600 psi |
| series circuit | 250 bar | 3600 psi | |
| Max. back pressure | on outlet port T | 25 bar | 360 psi |
| Fluid temperature | with NBR seals | from --20° to 80°C | |
| with FPM seals | from --20° to 100°C |
Description:
| Description | flow | ports | banks | relief valve |
| Walvoil SD5/1-N(KG3-120)/18L | 45LPM | 3/8" | 1 | 50-220bar |
| Walvoil SD5/1-N(KG4)/18L | 45LPM | 3/8" | 1 | 180-315bar |
| Walvoil SD5/1-P(KG3)/18L/AET | 45LPM | 3/8" | 1 | 50-220bar |
| Walvoil SD5/1-N(KG3-175)/117L2 | 45LPM | 3/8" | 1 | 50-220bar |
| Walvoil SD5/1-P(KG4-220)/18L/AE | 45LPM | 3/8" | 1 | 180-315bar |
| Walvoil SD5/1-N(KG4-190)/18ESNCAE-24VD C | 45LPM | 3/8" | 1 | 180-315bar |
| Walvoil SD5/2-P(KG3)/18L X2/AET | 45LPM | 3/8" | 2 | 50-220bar |
| Walvoil SD5/2-P(KG3)18L/211L/AET | 45LPM | 3/8" | 2 | 50-220bar |
| Walvoil SD5/2-P(SV)/18SLP/5WY13NZSLP/A E- | 45LPM | 3/8" | 2 | none |
| Walvoil SD5/3-P(KG3)/18L X3/AET | 45LPM | 3/8" | 3 | 50-220bar |
| Walvoil SD5/4-P(KG3)/18L X4/AET | 45LPM | 3/8" | 4 | 50-220bar |
| Walvoil SD5/5-P(KG3)/18L X5/AET | 45LPM | 3/8" | 5 | 50-220bar |
| Walvoil SD5/5-P(KG4-200)/18LX5/AET | 45LPM | 3/8" | 5 | 180-315bar |
| Walvoil SD5/6-P(KG3)/18L X6/AET | 45LPM | 3/8" | 6 | 50-220bar |
| Wlvoil SD5/7-P(KG3)/18L X7/AET | 45LPM | 3/8" | 7 | 50-220bar |
More series available:
| 1 | walvoil sd5 pdf |
| 2 | walvoil sd11 |
| 3 | walvoil loader valve |
| 4 | walvoil sd6 |
| 5 | walvoil sd4 |
| 6 | walvoil sd8 |
| 7 | walvoil sd14 |
| 8 | walvoil sd18 |
| 9 | walvoil sd25 |
| 10 | walvoil monoblock valves |
About the supplier:
Hanjiu is a hydraulic manufacturer and exporter from China. Hanjiu produce variety of hydraulic parts to suit range of brands & applications. We ship to all parts of the world.We introduce us as advantage supplement of your current hydraulic supply, solve reliability, quality, time, cost, brand promotion.
Hydraulic directional control valve is one of our specialties, we are good at Walvoil DF5, SD4, SD5, SD8, SD11, SD14, SD18, SD25 and other series.Below is a selection of our high-end compatible hydraulic directional control valves for Walvoil dealers and users for your reference. We also offer more hydraulic directional control valves
Welcome to contact us, send your demand list and quantity, understand our quotation, discuss cooperation.
