Product Details:
Payment & Shipping Terms:
|
| Item: | Directional Control Valve | Model: | RD5300 |
|---|---|---|---|
| Bank: | 3 Bank | Flow Rate: | 30GPM |
| Function: | 3 Floating Spool | Port: | SAE #12 |
| High Light: | 3000 psi directional control valve,30 gpm directional control valve,3 spool hydraulic directional control valve |
||

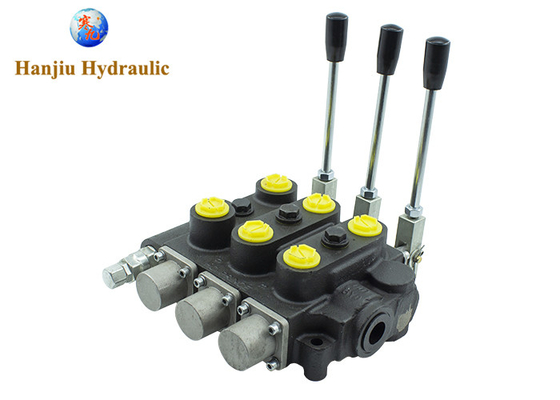

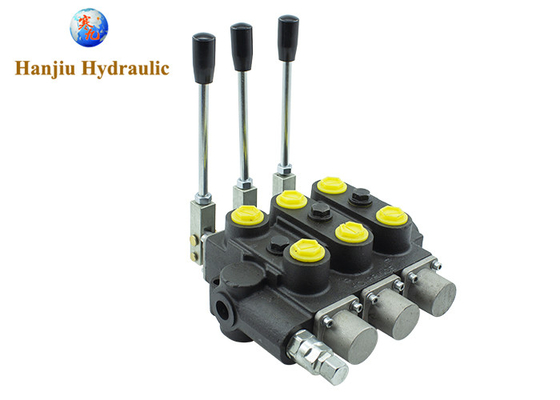

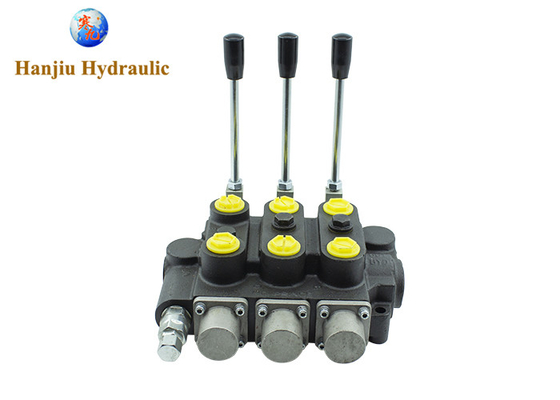

RD5300 Series 3 Floating Spool Directional Control Valve, 30 GPM, 3000 Max PSI, SAE # 12 Ports
Quick View:
| Series: | RD5300 series |
| GPM: | 30 |
| Function: | 3 floating |
| No. Of Spools: | 3 |
| Outlet Port: | SAE 12 |
| Work Port: | SAE 10 |
| PSI: | 3000 PSI max. |
RD5300 is a compatible option for Prince RD5300 directional control valve, Full featured, standard open center directional control valves. Heavy duty, made in China. Extra strong castings rated to 3000 PSI, to 30 GPM. Hard chromed spools, load checks, reversible handles, differential poppet reliefs. 3/4" NPT in-out ports, 1/2" or 3/4" work ports. Convertible to closed center, power beyond with optional conversion plugs.
Standard Features:
| Economical monoblock construction of high tensile strength gray cast iron. | Yes |
| Load check on each spool | Yes |
| Hard Chrome Plated Spools | Yes |
| Optional 4 Position Float and Joystick Handle | Yes |
| Differential poppet style relief, adjustable from 1500 to 3000 psi | Yes |
| Power beyond and closed center capability | Yes |
| Reversible Handle | Yes |
| Solenoid Actuated Option Available | Yes |
| Optional 4 Position Float and Joystick Handle | Yes |
| Ideal for loader application | Yes |
| Cable Control available | Yes |
Pressure Rating:
| Maximum Operating Pressure | 3000 psi |
| Maximum Tank Pressure | 500 psi |
| Nominal Flow Rating | 30 GPM |
| Maximum Operating Temp | 180°F |
More Model number available:
| RD5100 | RD512GG5A4B1 |
| RD512CA5A4B1 | |
| RD513GG5A4B1 | |
| RD513CA5A4B1 | |
| RD513CB5A4B1 | |
| RD5200 | RD522GCGA5A4B1 |
| RD522CCAA5A4B1 | |
| RD5300 | RD532GCCGAA5A4B1 |
| RD532CCCAAA5A4B1 |
More series available:
About the supplier:
Hanjiu is a hydraulic manufacturer and exporter from China. Hanjiu produce variety of hydraulic parts to suit range of brands & applications. We ship to all parts of the world.We introduce us as advantage supplement of your current hydraulic supply, solve reliability, quality, time, cost, brand promotion.
Hydraulic directional control valve is one of our specialties, we are good at Prince, Bucher, Walvoil, Parker, Youli valves and more. Below is a selection of our high-end compatible hydraulic directional control valves for Brand valve dealers and users for your reference. We also offer more hydraulic directional control valves
Welcome to contact us, send your demand list and quantity, understand our quotation, discuss cooperation.
