Fc51-3/4 Directional Control Valve Priority Flow Control 3/4″ Bspp Ports Without Relief

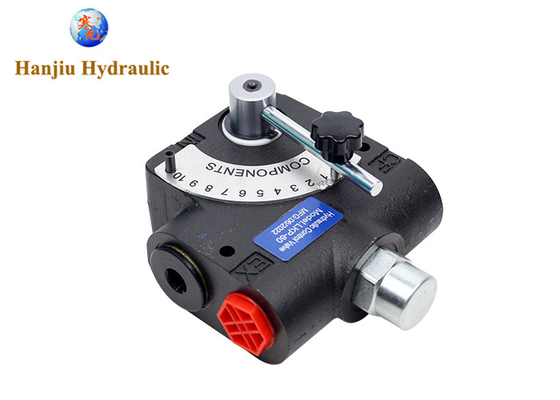

FC51-3/4 Priority Flow Control, 3/4″ BSPP Ports, Without Relief

Brief introduce:

The FC51 pressure compensated adjustable flow control valves are easily adjustable by rotating the handle. The flowout of the 'CF' or controlled flow port can be varied within the range. Any remaining flow is bypassed to the 'EF" orexcess flow port. This flow can be used to power another circuit or can be returned to tank.

The FCR51 model has a built-in adjustable pressure relief. The excess flow port MUST be connected to tank.

- 3000 PSI Max
- 180°F Max Temp-Filtration 17/14/19
- For use with mineral based Hydraulic Fluid- Side port configuration
- 100%Tested before dispatch
- External seals on rotary spool prevent contamination fromlocking up spool.

More size available :


Port Size

3/8″ – 3/8″ NPT (30 LPM)
1/2″ – 1/2″ NPT (60 LPM)
3/4″ – 3/4″ NPT (114 LPM)
Port – 2P – 2 Port

About manufacturer:

HANJIU designs, manufactures and exports various hydraulic directional control valves to any country and region in the world. It can meet the needs of hydraulic systems of various mobile equipment and can be adapted to various brands and applications. Compatible with various brands, the original components you see on the equipment can be replaced with Hanjiu's hydraulic valves.
