2 Spool 250 Bar Monoblock Control Valve Cable Joystick With Button

Name: 2 Spool 250 Bar Monoblock Control Valve Cable Joystick With Button
Brand: HANJIU
SKU: 2P80
Rating: 4.7 (135 reviews)

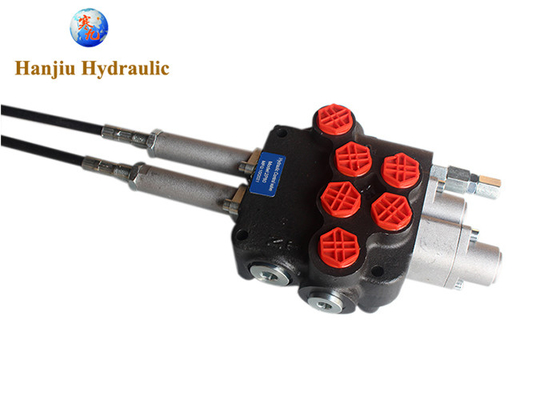

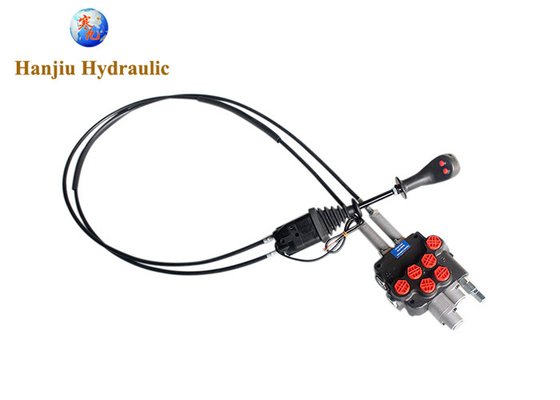

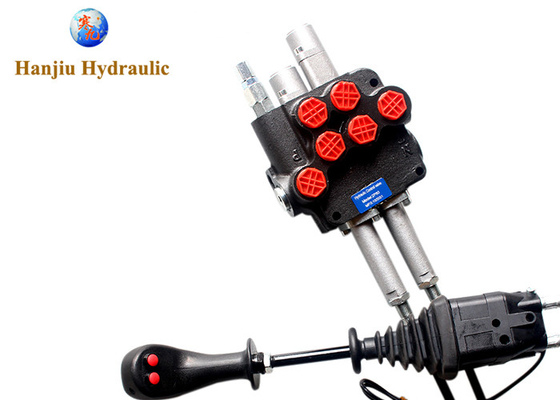

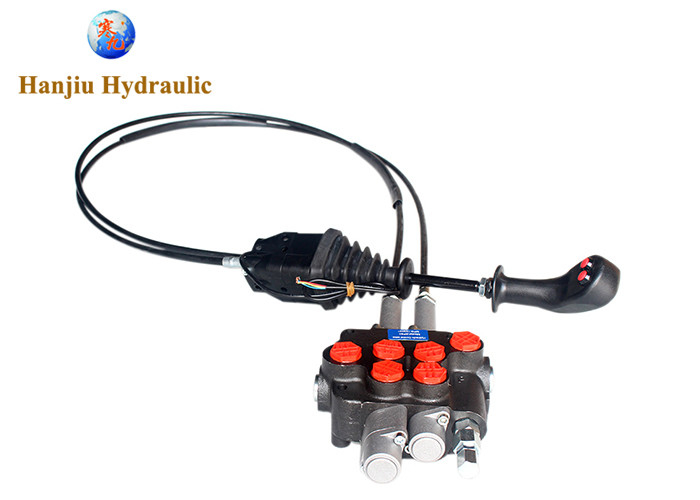

Large Image : 2 Spool 250 Bar Monoblock Control Valve Cable Joystick With Button

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	2P80

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	Contact the seller to get a quote
Packaging Details:	Carton, Box, Pallets
Delivery Time:	25 - 35 work days
Payment Terms:	L/C, T/T, Western Union, Western Union
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Item:	Monoblock Valve	Model:	2P80
Bank:	2 Bank	Flow Rate:	80 LPM
Thread:	G 3/4 BSP	Function 1:	Cable Joystick With Button
Function 2:	Spring Return	Function 3:	Detent
High Light:	250 bar monoblock control valve , two bank monoblock control valve , 2 spool hydraulic control valve

2 spool monoblock valve, 250 bar cable joystick with button, spring return with detent

This is a monoblock type directional control valve

Quick review:

Model number: 2P80

Nominal Flow: 80 LPM

Operating pressure max: 250 bar, 3626 psi

Relief valve pressure: 200 bar

Control type: joystick with cable ( standard length 1.5m, customizable)

Spool type: 3 position, spring return, detent in A and B

Specification:

Temperature -40C ... + 60C
Hydraulic fluid - hydraulic oil based on mineral oil Viscosity 12..800mm2 - s-permit range 12 ... 800 mm2 - s
Fluid temperature -15C ... + 80C
Filtration 10 to NAS 1638 Max. operating pressure,
P = 250
T = 50 bar
A, B = 300 bar
Leakage (A, BT) 18 cm3 - min to 120 bar
Nominal flow 80 l - min
Spool stroke + - 7 mm Actuation force

Norminal Flow	80L/min
Max.flow	80L/min
Max Pressure	250bar
Control Type	manaual or customized
Pneumatic control pressure	5~10bar
Oil port size	as customized
Spool stroke	±5mm
