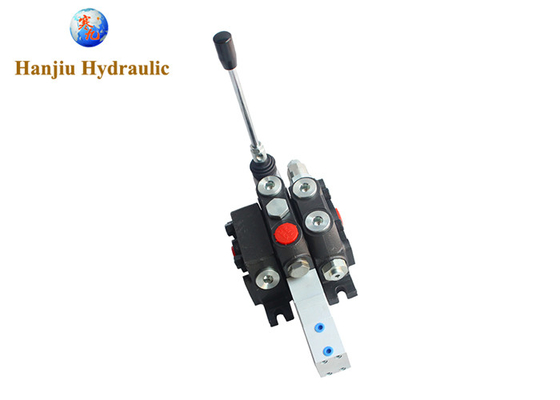

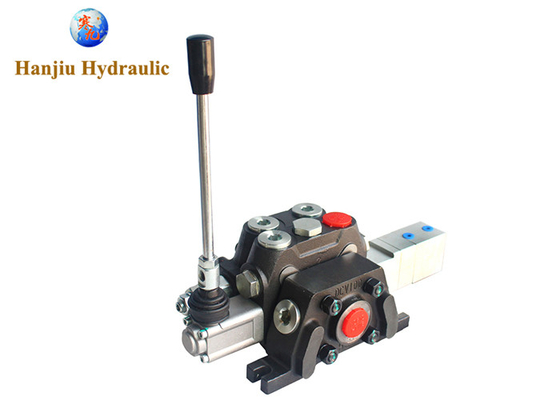

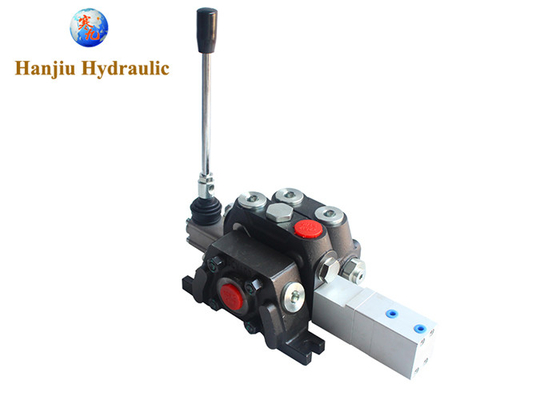

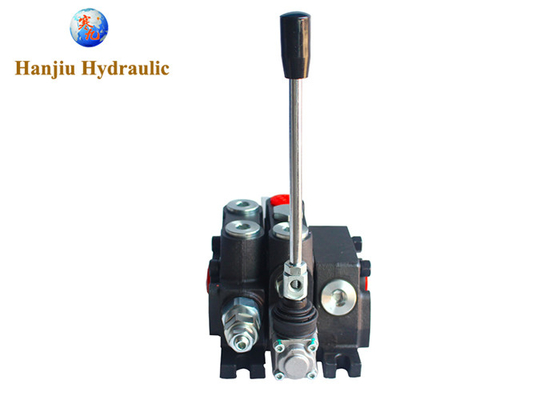

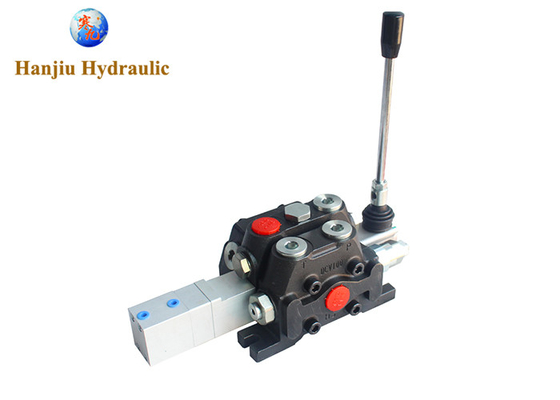

1 Spool 350 Bar Sectional Directional Control Valve Manual Pneumatic Control 20-200 Lpm

Name: 1 Spool 350 Bar Sectional Directional Control Valve Manual Pneumatic Control 20-200 Lpm
Brand: HANJIU
SKU: DCV100/1
Rating: 4.7 (130 reviews)

Large Image : 1 Spool 350 Bar Sectional Directional Control Valve Manual Pneumatic Control 20-200 Lpm

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	DCV100/1

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	Contact the seller to get a quote
Packaging Details:	Carton, Box, Pallets
Delivery Time:	25 - 35 work days
Payment Terms:	L/C, T/T, Western Union, Western Union
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Item:	Sectional Valve	Model:	DCV100/1
Bank:	1 Bank	Flow Rate:	100 LPM
Thread:	G 3/4 BSP	Function 1:	Manual
Function 2:	Spring Return	Function 3:	Pneumatic
High Light:	1 spool sectional directional control valve , 350 bar sectional directional control valve , manual pneumatic control sectional valve

1 spool sectional valve, 350 bar, manual pneumatic control, 20 - 200 LPM

This is a sectional type directional control valve

Quick review:

Model number: DCV100/1

Nominal Flow: 100 LPM

Operating pressure max: 350 bar, 5076 psi

Relief valve pressure: 200 bar

Control type: pneumatic

Specification:

Control Type	manual ( pneumatic, hydraulic, electro-hydraulic available )
Allowed back pressure	≤1 mpa
Oil port size	customizable
Operating range	15-75MM2/S
Viscosity	min 12 MM2/S
	max 400 MM2/S
Structure	sectional 1-12sections

More models:

DCV valve	Flow	Nom. Pressure	Spool
DCV 20	20L/Min	100 ~315 BAR	1-12 sections
DCV 40	40L/Min	100 ~315 BAR	1-12 sections
DCV 45	45L/Min	100 ~315 BAR	1-12 sections
DCV 60	60L/Min	100 ~315 BAR	1-12 sections
DCV 100	100L/Min	100 ~315 BAR	1-12 sections
DCV 140	140L/Min	100 ~315 BAR	1-12 sections
DCV 200	200L/Min	100 ~315 BAR	1-12 sections
