| Item: | Monoblock Control Valves | Model: | МР80 |
|---|---|---|---|
| Spool Type: | Closed Center | Flow Rate: | 80-100 L/mi |
| Pressure Rated: | Up To 200 Bar | Number Of Spools: | 2 Or 3 Pcs |
| Maximum Pressure At Ports A And B: | Up To 250 Bar | Control Type: | Manual Control |
| Application: | BELARUS, XTZ, UMZ Etc. | Suit: | Tractors, Dozers |
| High Light: | МР80 Monoblock Valve,80L/Min Monoblock Control Valves,100L/Min Monoblock Control Valves |
||

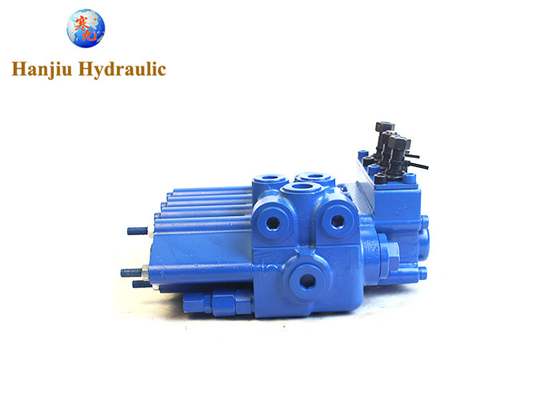

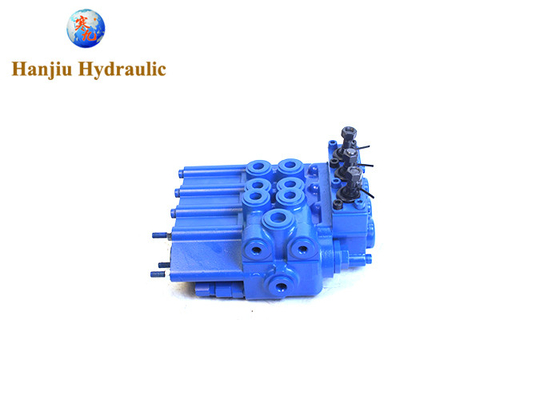

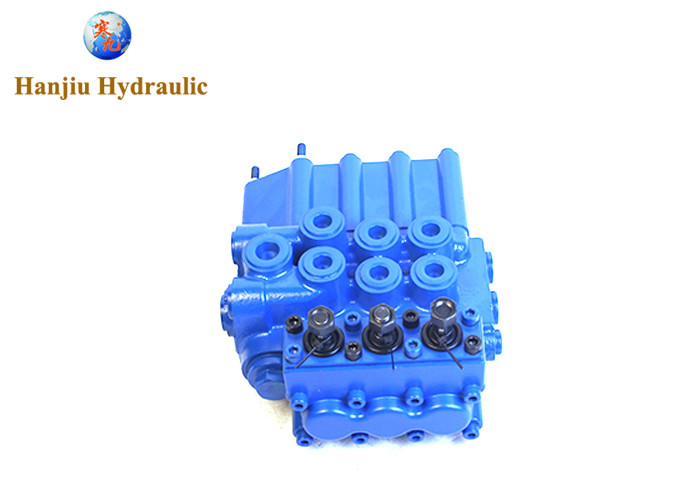

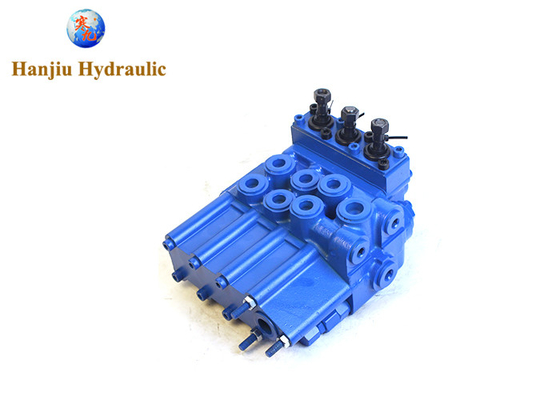

МР80 Monoblock control valves, rated flow Flow 80-100 l/min, Closed center
Quick View:
The valves are used to change the fluid flow and protect hydraulic systems of tractors, agricultural. For example:
Agricultural tractors BELARUS, XTZ, UMZ etc.
- Pipelayers ChTZ-URALTRAK
- Forest tractors
- Dozers
Specification:
| 1, | The closed center directional valve is designed for hydraulic systems with fixed displacement pump. |
| 2, | Equipped with a main relief valve and unloading valve. |
| 3, | A load check valve for proportional control of the spools. |
| 4, | Parallel hydraulic circuit. |
| 5, | Variety of 3 and 4 positions spools. |
| 6, | Manual control. |
| 7, | Cartridge pilot check valves is avaible. |
| 8, | Control valves МР80 variants: |
| 9, | MP80-4/1 - single unit in hydraulic system; |
| 10, | MP80-4/2 - combined with the control valve MP80-4/3; |
| 11, | MP80-4/3 (without pressure relief valve) - combined with the control valve MP80-4/2**; |
| 12, | MP80-4/4 - combined with hitch controller 80-4614020*. |
| 13, | * It is allowed to use the MP80-4/2 and MP80-4/4 valves independently when installing an additional branch pipe connected to the drain instead of the K1/4 "plug. |
| 14, |
** Stand-alone application of the MP80-4 / 3 distributor is FORBIDDEN.
|
