Product Details:
Payment & Shipping Terms:
|
| Model No.: | 3P120 | Warranty: | 12 Months |
|---|---|---|---|
| Spool: | 1 - 4 | Flow: | 120 Liter |
| High Light: | 3P120 monoblock loader valve,monoblock loader valve three spools,3P120 monoblock spool valve |
||

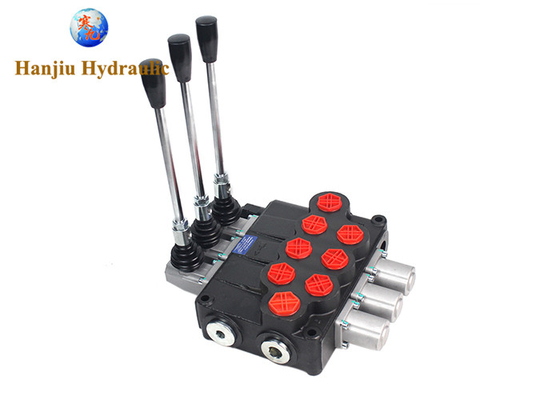

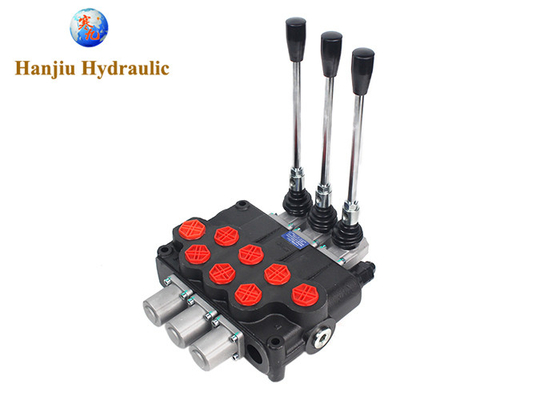

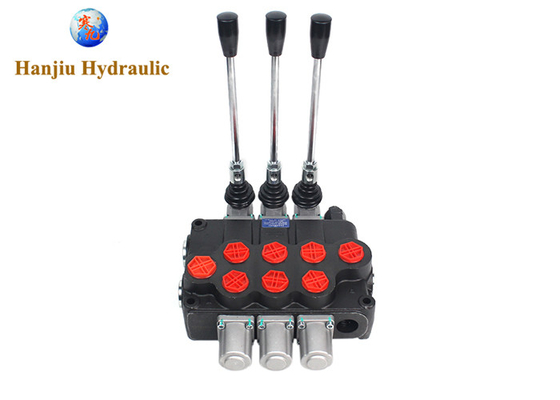

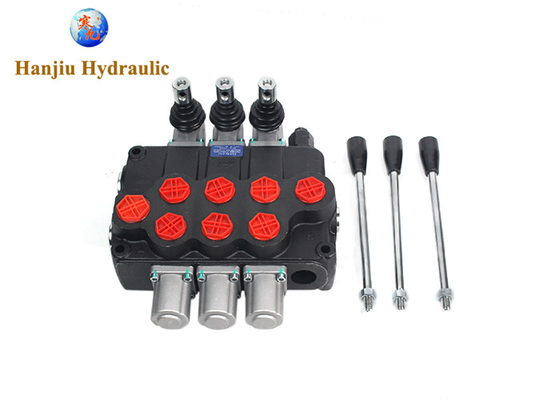

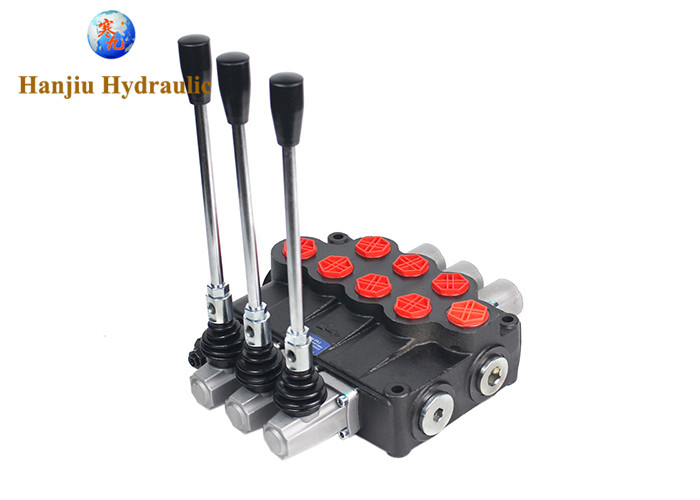

120 liter monoblock control valve, 3P120 , three spools , G 3/4" , open center spool
Quick review:
compatible with 3P120 A1 A1 A1 GKZ1 ¾ | 3P120-A1-A1-A1-GKZ1-¾ | 3P120A1A1A1GKZ1 ¾
1 – 4 Spools available
| Ports | G 3/4" |
| Max. Pressure | 300 |
| Working Flow Rate | 120 |
| Serie | 3P120 |
| Spool Type | open center spool |
| Number of Spool | three spools |
More P120 Control Valve available:
| Monobloc Directional Control Valves | ||||||||
| Code | Sections | Max. Flow | Port Sizes | Max. Pressure | Tank | |||
| NO. | (L/min.) | P | A - B | T | N | (Bar.) | Pressure (Bar.) | |
| 1P120 1 A1 GKZ1 | 1 | 120 | G1” – G1” –G 1" –G 1" G1” – G3/4” –G 3/4" –G 1" |
250 | 50 | |||
| 2P120 1 A1 A1 GKZ1 | 2 | 120 | 250 | 50 | ||||
| 3P120 1 A1 A1 A1 GKZ1 | 3 | 120 | 250 | 50 | ||||
| 4P120 1 A1 A1 A1 A1 GKZ1 | 4 | 120 | 250 | 50 | ||||
The hydraulic distributor Р120 is used for switching on/off and controlling of the working fluid between head flow generators (hydraulic pumps), head flow consumers (hydraulic cylinders, motors, etc.), and the tanks of hydraulic systems of mobile machines (electrical and diesel forklifts, excavators, auto-cranes, etc.).
About Hanjiu:
Hanjiu valves are compatible with Italian & Bulgaria makes, they are available as follows:
*** monoblock, sectional
*** for high pressure hydraulic system, such as drilling machine, sanitation, etc.
*** manual, joystick, cable, pneumatic, solenoid, electro-pneumatic, electro-hydraulic
*** 40 liters - 200 liters, 1 spool to 12 spool
Monoblock valve has a normal pressure of 250 bar, more used in agriculture and light industry
Sectional valve belongs to the high-pressure valve 350 bar, more used in the field of heavy machinery
