Product Details:
Payment & Shipping Terms:
|
| Model No.: | SVV90 | Spool: | 1 Spool |
|---|---|---|---|
| Nominal Pressure:: | 250 Bar | Max Flow:: | 90L/MIN |
| Voltage:: | 24 VDC | Brand:: | Hanjiu |
| High Light: | SVV90 Series Directional Control Valves,Directional Control Valves 24VDC,Directional Control Valves 24VDC |
||

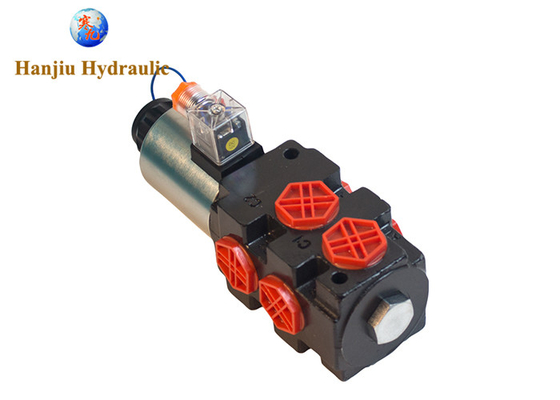

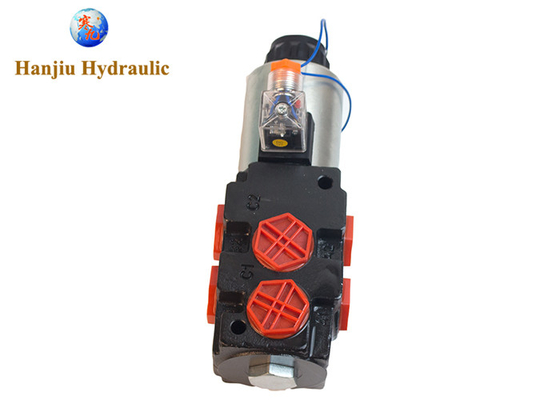

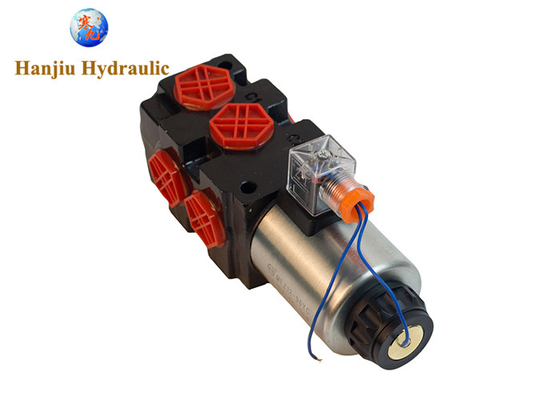

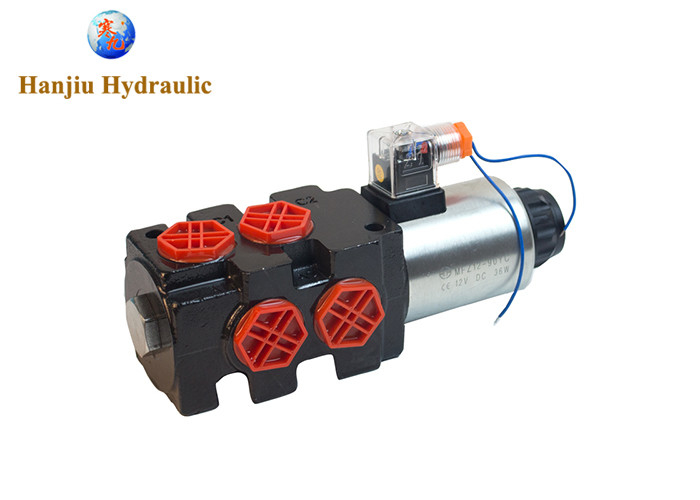

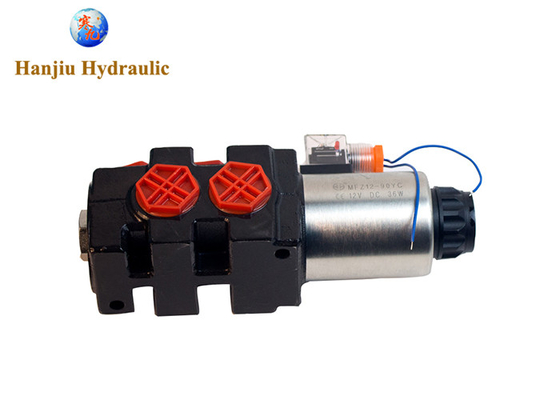

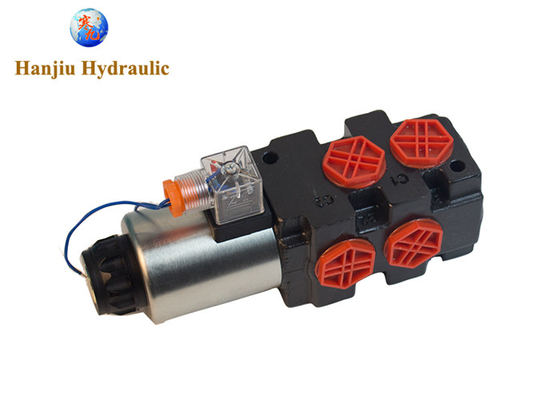

SVV90 Series Selector Valves with electromagnetic control, one spool , G 1/2" , open center spool , 24 V
SVV valves are 6 ways, 2 positions (6/2) solenoid operated selector valves. They are used for selective connection of different cylinders/hydraulic motors in the application.
| parameter | value |
| Number of Work Sections | from 1 to 3 |
| Max working pressure | 315 bar |
| Operating pressure | 210 bar |
| Rated flow | 50 l / min |
| Working temperature | from -30 ° С to + 50 ° С |
| Fluid viscosity | from 20 to 400 mm 2 / s |
| Fluid temperature | from -20 ° С to + 70 ° С |
| Filtration | Grade 9 NAS1638 |
| Supply Voltage / Power Consumption | 12VDC * / 36W and 24VDC * / 29W |
| Switching frequency max | 15,000 times per hour |
| Duty cycle | one hundred% |
Directional control valves are one of the core elements in a hydraulic circuit. They help directing the fluid to different components in the system.
Directional control valves perform only three functions:
Stop fluid flow
Allow fluid flow
Change direction of fluid flow
There is a part called «spool» inside control valve which can be operated mechanically or electrically. The movement of the spool lets oil flow or blocks the oil flow in other words it controls the movement of fluid. Hidros provide monoblock directional control valves with different capacities and spool control options such as hydraulic, pneumatic or with cables/joysticks.
SVV valves are 6 ways, 2 positions (6/2) solenoid operated valves. They are used for selective connection of different cylinders/hydraulic motors in the application. When valve is de-energised, oil directs from D & C ports to first actuator. When valve coil is energised, oil directs from A & B ports to second actuator.
Model type:
type A
Type B
Type C
