Product Details:
Payment & Shipping Terms:
|
| Item: | Hydraulic Valves | Model: | 1P40 |
|---|---|---|---|
| Apply To: | Agri Application | Spool: | 1 Spool |
| MAax Operation Pressure: | 250 Bar | Nominal Flow: | 40 Liters |
| High Light: | P40 Series Directional Control Valve,P40 Series Monoblock Control Valve,3/8 port Directional Control Valve |
||

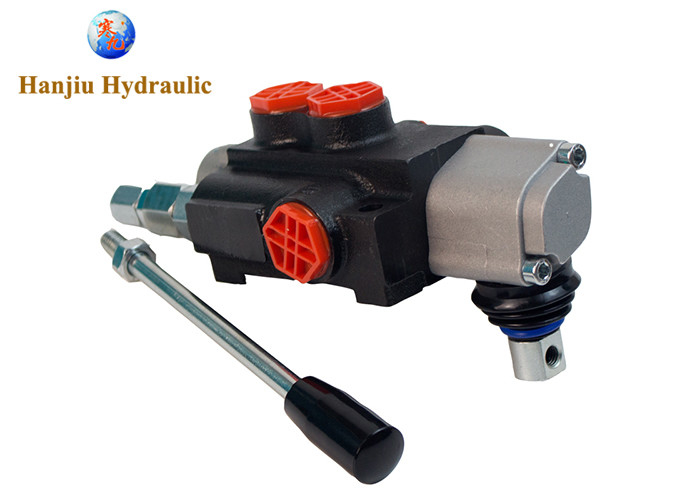

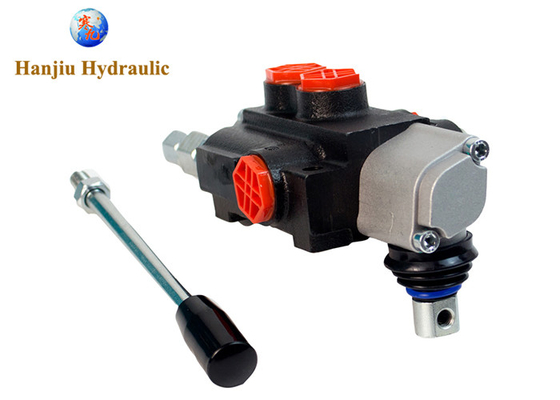

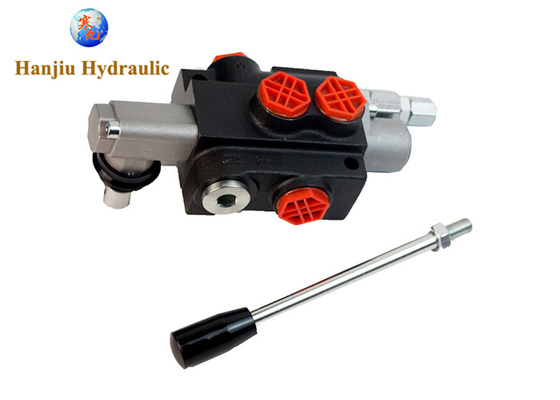

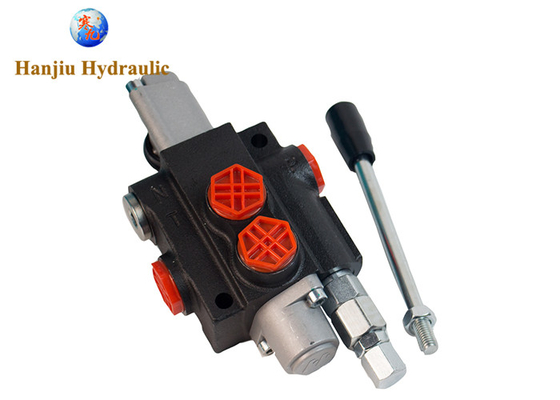

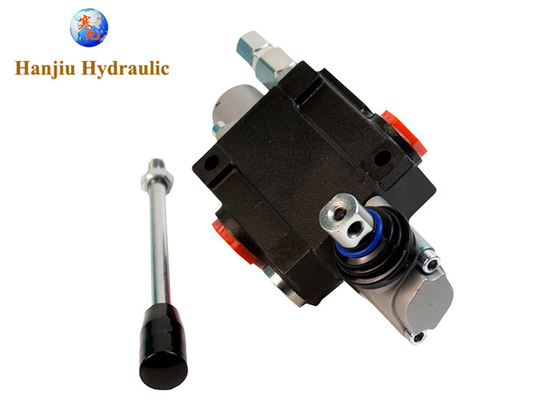

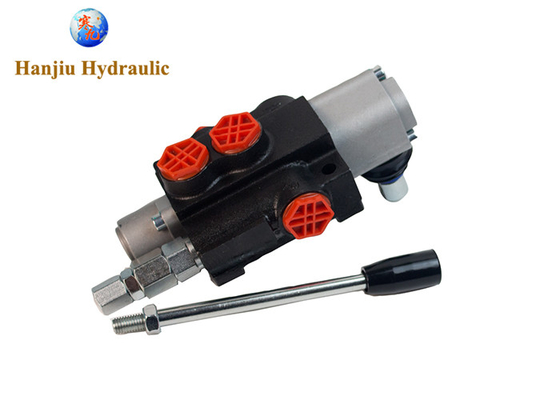

P40 Series Monoblock Directional Control Valve handle 180° reverse, one spool, G 3/8 port
Quick review:
Nominal flow rate: 40 liter/min
Max. Pressure: P: 315 bar, T: 50 bar, A-B: 300 bar
Spool type: Standard open center spool (A spool), different spool options
Leakage: 5 cm3/min at 100 bar (From A,B to T)
Fluid temperature range: -10 oC … +80 oC
Working fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)
Filtration: 10 to NAS 1638
Number of spools: From 1 to 7
| Code | Number of levers | Nominal flow rate | Max. pressure |
| L/min | P port | ||
| bar | |||
| P40-A1-GKZ1 | 1 | 40 | 315 |
| 02P40-1A1A1-GKZ1 | 2 | 40 | 315 |
| 03P40-1A1A1A1-GKZ1 | 3 | 40 | 315 |
| 04P40-1A1A1A1A1-GKZ1 | 4 | 40 | 315 |
| 05P40-1A1A1A1A1A1-GKZ1 | 5 | 40 | 315 |
| 06P40-1A1A1A1A1A1A1-GKZ1 | 6 | 40 | 315 |
| 07P40-1A1A1A1A1A1A1A1-GKZ1 | 7 | 40 | 315 |
| * Standard spool is open center “A” spool with spring return. Working port threads are G 3/8. | |||
