BSP ports Joystick Monoblock Directional Control Valve 2P40 2 Spools Manual Control

BSP ports Joystick Monoblock Directional Control Valve 2P40  2 Spools Manual Control
BSP ports Joystick Monoblock Directional Control Valve 2P40  2 Spools Manual Control BSP ports Joystick Monoblock Directional Control Valve 2P40  2 Spools Manual Control BSP ports Joystick Monoblock Directional Control Valve 2P40  2 Spools Manual Control BSP ports Joystick Monoblock Directional Control Valve 2P40  2 Spools Manual Control

Large Image :  BSP ports Joystick Monoblock Directional Control Valve 2P40 2 Spools Manual Control

Product Details:
Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: 2P40
Payment & Shipping Terms:
Minimum Order Quantity: 30 Sets
Price: Negotiable
Packaging Details: Carton Packing and finally with a Tray, or Wooden Box
Delivery Time: 10-15 work days
Payment Terms: L/C, T/T
Supply Ability: 300000 sets per year
Detailed Product Description
Model No.: 2P40 Warranty: One Year
Spool: 1, 2, 3, 4, 5, 6,7 ... Flow: 40lt,
Spool Function: Spring Function,air Control Port Size: BSP Ports
High Light:

Monoblock Directional Control Valve 2P40

,

2 spool joystick valve 2P40

,

BSP ports Monoblock Directional Control Valve

Joystick monoblock valve p40 2 spools manual control with air control bspp ports



Hanjiu hydraulic supply the hydraulic control valves for agricultural machines

with joystick control,one spool is manual valve,one spool is floating control,

four positon,double acting.



it is easy to operate,long life, very suitable for your machinery.





Product details



Ambient temperature -40C...+60C
Viscosity 12 ...800 mm2/s
Fluid temperature -15C...+80C
Filtration 10 to NAS 1638
Max operating pressure 200 bar
Back pressure 50 bar
Nominal flow 40 l/min
Spool stroke 9 mm
Actuating force < 200 N
Structure 2sections

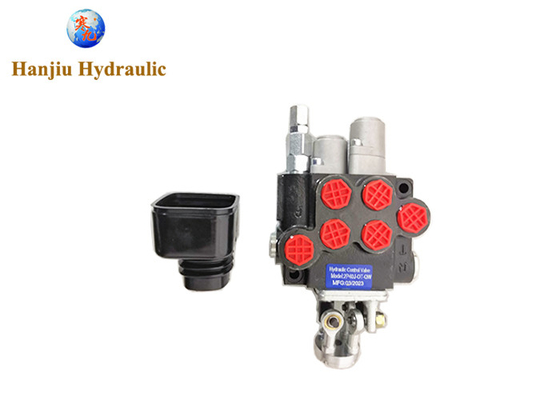

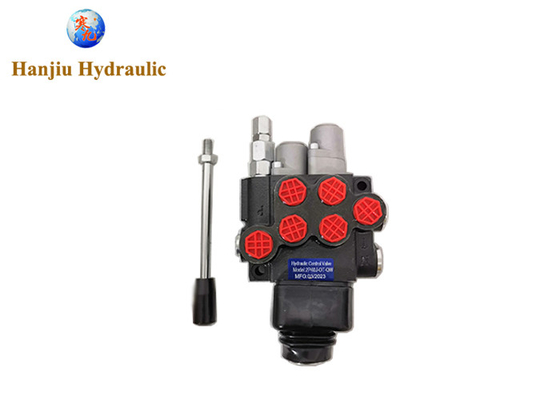

BSP ports Joystick Monoblock Directional Control Valve 2P40  2 Spools Manual Control 0BSP ports Joystick Monoblock Directional Control Valve 2P40  2 Spools Manual Control 1BSP ports Joystick Monoblock Directional Control Valve 2P40  2 Spools Manual Control 2

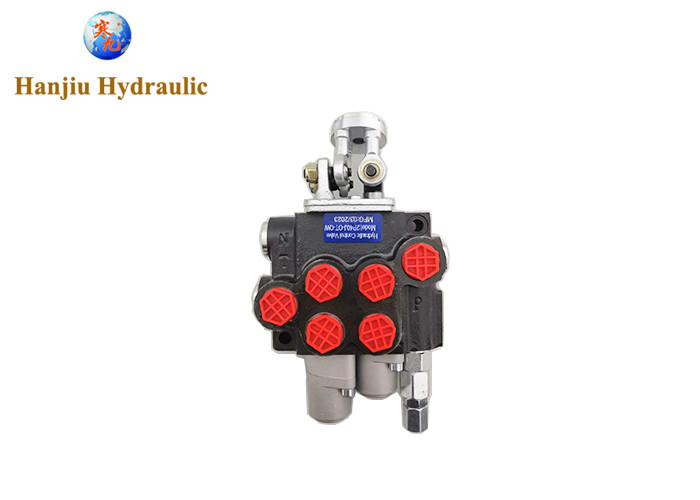

BSP ports Joystick Monoblock Directional Control Valve 2P40  2 Spools Manual Control 3

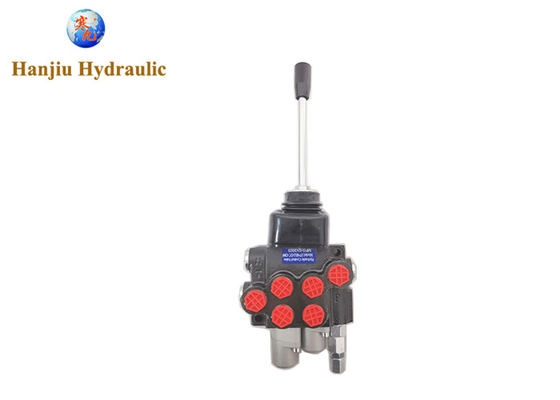

BSP ports Joystick Monoblock Directional Control Valve 2P40  2 Spools Manual Control 4

With the continuous improvement of hydraulic technology, the market has increasingly higher requirements for hydraulic directional valves. The first requirement of many consumers when buying a hydraulic directional valve is high efficiency. Of course, hydraulic components with low efficiency cannot be regarded as qualified hydraulic components. In addition to the high efficiency of hydraulic components, the service life is also the focus of consumers' most attention. A high-quality hydraulic directional valve can ensure a long service life of the hydraulic directional valve. It not only saves costs, but also ensures the continuous and stable operation of the hydraulic system.

The hydraulic market under the influence of the epidemic is still active, and consumer demand for hydraulic components remains at a certain level. Due to the impact of the epidemic, it is difficult to purchase hydraulic components on site. But this does not mean that you will not have the opportunity to buy your favorite products. In this era of such a developed network and logistics, you can buy the most cost-effective products through many channels.Hanjiu hydraulic always your best choice
