Product Details:
Payment & Shipping Terms:
|
| Model No.: | SVV90 | Spool: | 1 Spool |
|---|---|---|---|
| Nominal Pressure:: | 250 Bar | Max Flow:: | 90L/MIN |
| Voltage:: | 24 Vc/12vc | Brand:: | Hanjiu |
| High Light: | Solenoid Operated Valve SVV90,direct operated solenoid valve 24Volt,directional solenoid valve SVV90 |
||

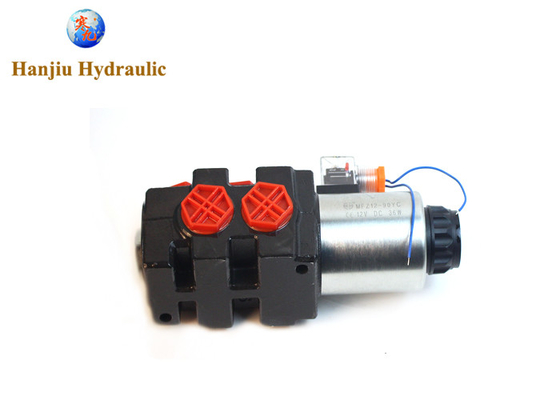

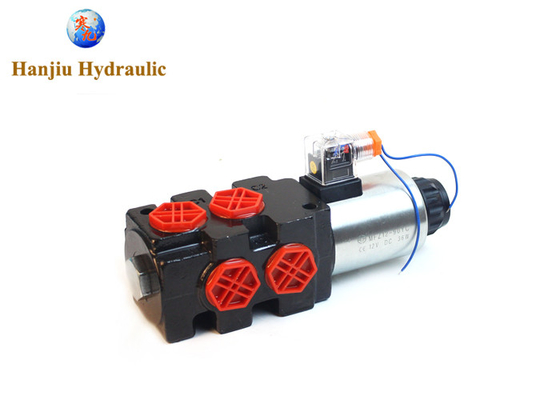

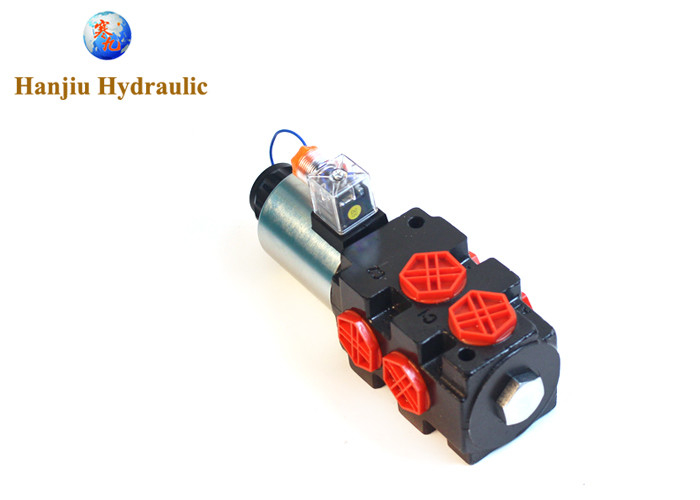

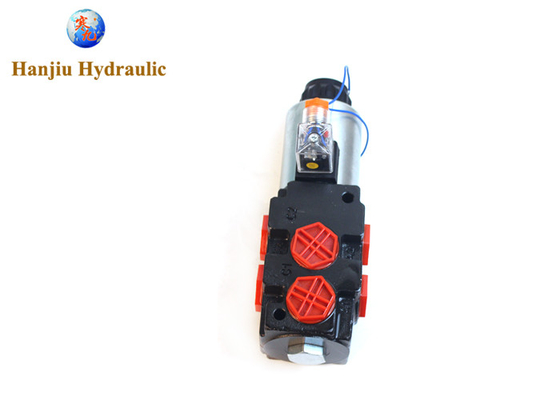

6/2 solenoid operated valve, SVV90 , one spool , G 1/2" , open center spool , 24V
SVV valves are 6 ways, 2 positions (6/2) solenoid operated selector valves. They are used for selective connection of different cylinders/hydraulic motors in the application.
| parameter | HSV9 |
| Number of Work Sections | ONE SECTION |
| Max working pressure | 315 bar |
| Operating pressure | 210 bar |
| Rated flow | 90 l / min |
| Working temperature | from -30 ° С to + 50 ° С |
| Fluid viscosity | from 20 to 400 mm 2 / s |
| Fluid temperature | from -20 ° С to + 70 ° С |
| Filtration | Grade 9 NAS1638 |
| Supply Voltage / Power Consumption | 12VDC * / 36W and 24VDC * / 29W |
| Switching frequency max | 15,000 times per hour |
| Duty cycle | one hundred% |
Model type:
type A
Type B
Type C
