| Item: | Hydraulic Valves | Model: | DCV120-6 |
|---|---|---|---|
| Apply To: | Road Sweepers | Spool: | 6 Spool |
| Max Operation Pressure: | 350 Bar | Control Type: | Manual Control |
| High Light: | 350 bar hydraulic directional control valve,road sweepers hydraulic directional control valve |
||

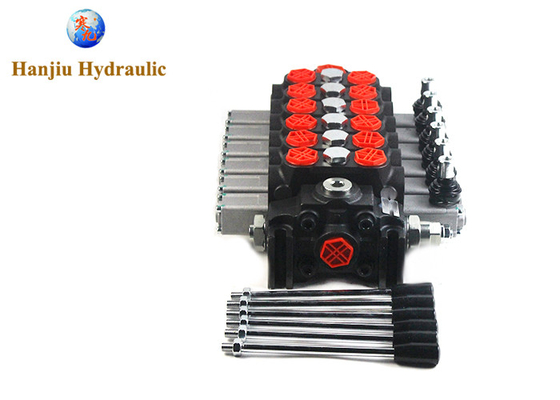

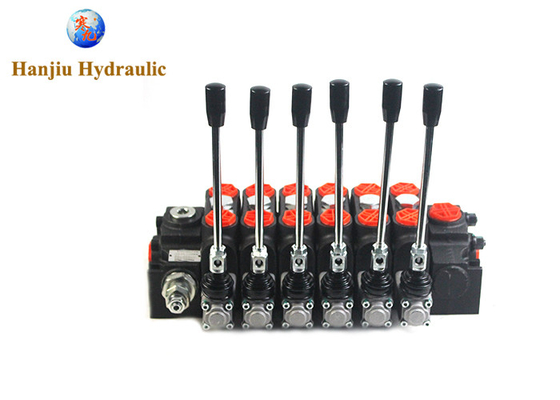

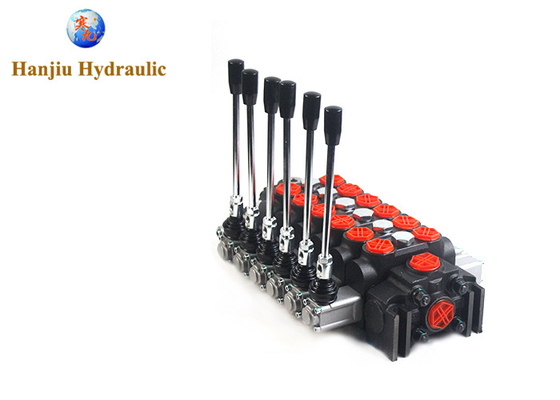

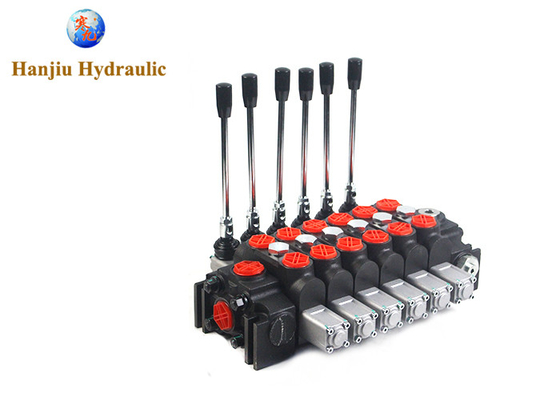

Manual High Pressure Hydraulic Valve DCV120, 350 bar 6 spools for road sweepers
there are several spare parts you need to choose if you want to enhance your valves,
and meet your different requirements
Auxiliary valve: over-load valve, anti-cavitation valve,combined valve, etc. not for DCV20-45
| flow rate | 120liters |
| number of spools | 1-9 spools |
| inlet section valve | side inlet, with relief valve |
| relief valve set pressure | 100-350bar |
| inlet port size | G1 |
| spool type | 3 positon, double acting |
| handle side arrangement | standard handle, upside down handle |
| spool cap side arrangement | 3position, spring return |
| working section arrangement | standard type |
| work port size | G3/4 |
| outlet section type | top outlet,side outlet |
| outlet port size | G1 |
Reliability, robustness and efficiency are a must when choosing the right valve solution for your machine. But sometimes you can meet your performance needs with a lighter weight alternative.
That’s when the DCV directional control valves are likely to be your best choice.
Hanjiu technology supply you more types of DCV hydraulic valves, from 40 liters to 200 liters
with hydraulic control, electric types, and pneumatic-hydraulic valves, widely used on Drilling rigs, cranes, flatbed trucks, special operating vehicles (sanitation vehicles, garbage trucks, road sweepers) dump trucks, truck-mounted cranes and other construction machinery
choose hanjiu DCV valves for your different machines
