| Item: | Hydraulic Valve | Model: | DCV100/5 |
|---|---|---|---|
| Spool No.: | 5 Spool | Max Operation Pressure: | 315 Bar |
| Control: | Sdandard Handle | Spool: | 3 Position Double Acting |
| Return: | Spring Return | Flow: | 100 Liter |
| High Light: | 100lpm hydraulic control valve,350 bar hydraulic control valve,100lpm directional valve |
||
Quick review:

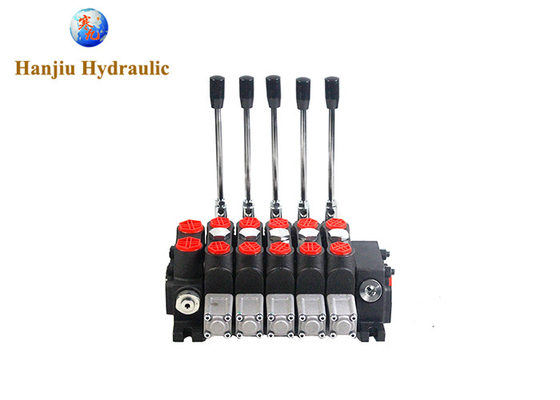

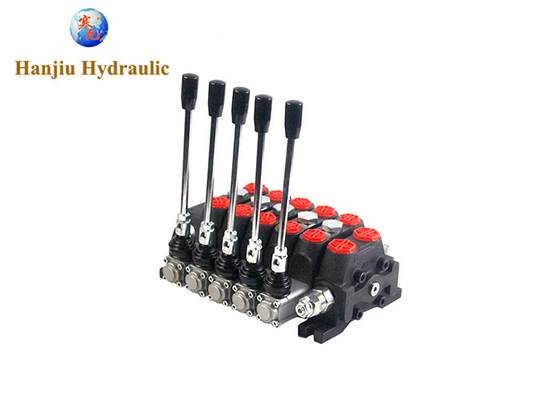

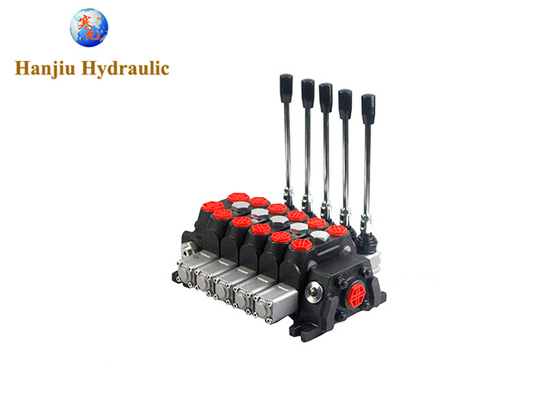

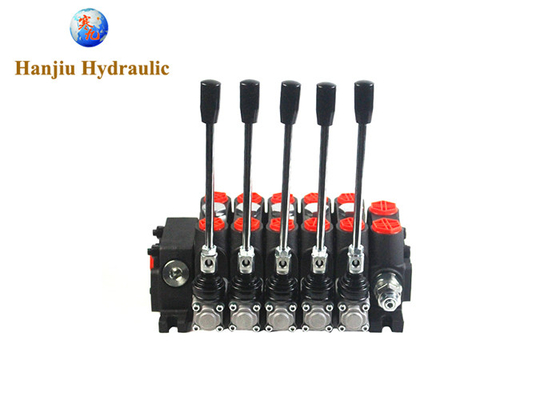

DCV Series 100LPM Manual Control Hydraulic Vlave, 5 spool, standard handle, spring return, 350 bar
Features:
| flow rate | 100liters |
| number of spools | 5spools |
| inlet section valve | side inlet, with relief valve |
| relief valve set pressure | 100-315bar |
| inlet port size | G1 |
| spool type | 3 positon, double acting |
| handle side arrangement | standard handle |
| spool cap side arrangement | 3position, spring return |
| working section arrangement | standard type |
| work port size | G3/4 |
| outlet section type | top outlet |
| outlet port size | G1 |
More DCV series Hydraulic Valves:
DCV20
DCV40
DCV60
DCV100
DCV120
DCV140
DCV160
DCV200
About Hanjiu:
Hanjiu technology specialzied in Sectional hydraulic control valves from 20 liters to 200 liters with hydraulic control, electric types, and pneumatic-hydraulic valves, widely used on Drilling rigs, cranes, flatbed trucks, special operating vehicles (sanitation vehicles, garbage trucks, road sweepers) dump trucks, truck-mounted cranes and other construction machinery. Obtain the maximum benefit with the minimum cost, and you have no risk in cooperating with us. If you are hydraulic valves importer, wholesaler, OEM factory, contact us to discuss cooperation and get big customer discount.
