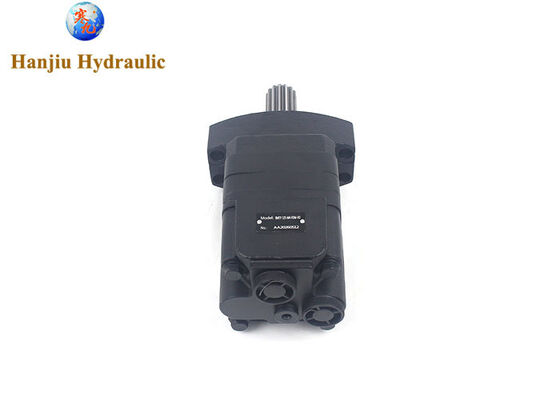

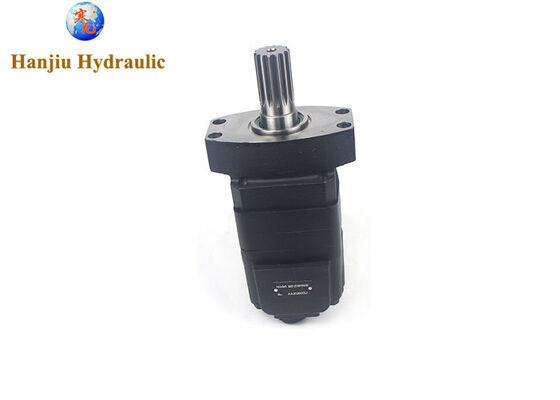

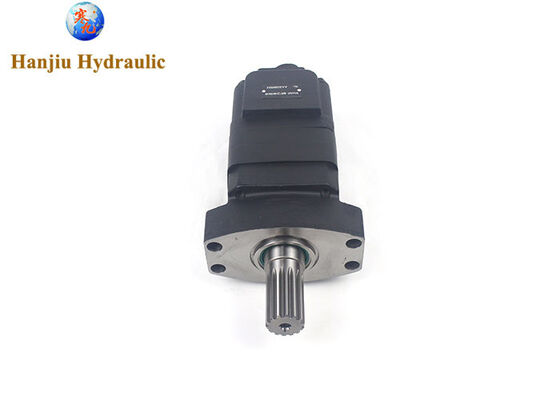

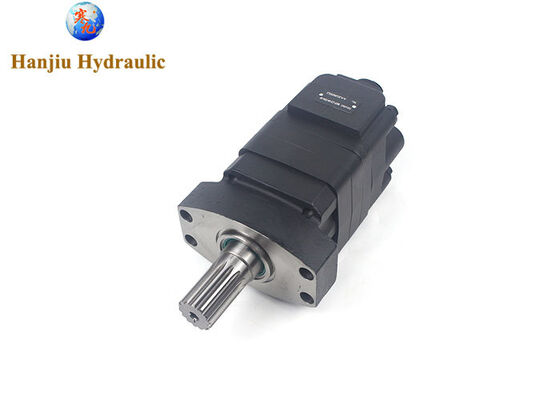

Customized hydraulic motor BMSY,125cc magneto flange , 14T spline shaft with rear ports

Large Image : Customized hydraulic motor BMSY,125cc magneto flange , 14T spline shaft with rear ports

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	BMSY-125-M4-FDM-HD

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the seller to ask
Packaging Details:	Box, Pallet
Delivery Time:	25 - 35 work days
Payment Terms:	L/C,D/A,T/T,Western Union,Payple
Supply Ability:	100000 pieces per year

Contact Now

Detailed Product Description

Item:	Low Speed High Torque Motor	Type:	BMSY-125-M4-FDM-HD
Flange:	Square Flange	Shaft:	14T Spine Shaft
Materia:	Cast Iron	Warranty:	1 Year
Highlight:	Customized hydraulic motor BMSY , 125cc hydraulic motor with flange , 14T spline shaft hydraulic motor

Customized hydraulic motor BMSY,125cc magneto flange , 14T spline shaft with rear ports

Product details:

type code BMSY-125-M4-FDM-HD

Displacement:125cc

Flange:Magneto flange, 4 bolts

Shaft:14T spline shaft

Ports: rear ports

G1/2 Manifold Mount;

2-M10 , G1/4

BMSY Main Specifications:

Type		BMSY 80	BMSY 100	BMSY 125	BMSY 160	BMSY 200	BMSY 250	BMSY 315	BMSY 400	BMSY 475
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	370	475
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	185	155
Max. speed (rpm)	int.	988	900	720	560	450	360	280	225	185
Max. torque (N·m)	cont.	225	290	365	485	586	708	880	880	910
Max. torque (N·m)	int.	305	390	480	590	705	860	1000	980	990
Max. output (kW)	cont.	16	18	18	18.1	18.1	18	17	11	9
Max. output (kW)	int.	20	22	23	25	24	23.8	20.2	12	11
Max. pressure drop (MPa)	cont.	20.5	20.5	20.5	21	21	20	20	16	14
	int.	27.5	27.5	27.5	26	25	25	24	19	15
	peak	29.5	29.5	29.5	28	27	27	26	21	17.5
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	13.2	14.3

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute

Customized hydraulic motor BMSY,125cc magneto flange , 14T spline shaft with rear ports 0

Customized hydraulic motor BMSY,125cc magneto flange , 14T spline shaft with rear ports 1

Customized hydraulic motor BMSY,125cc magneto flange , 14T spline shaft with rear ports 2

Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems

Customized hydraulic motor BMSY,125cc magneto flange , 14T spline shaft with rear ports 3

This specific motor series—often produced by brands like Hanjiu, Dynamic Fluid Components , Anfield, or Huade—is widely utilized in agricultural machinery, skid-steer attachments, conveyors, and winch drives

if you have special type of orbit motors, pls check with HANJIU Technology

we will do our best to design and produce for you!
