Hydraulic Motor for Draper Platform Belt Drive- AXE72734 Orbit motor with speed sensor

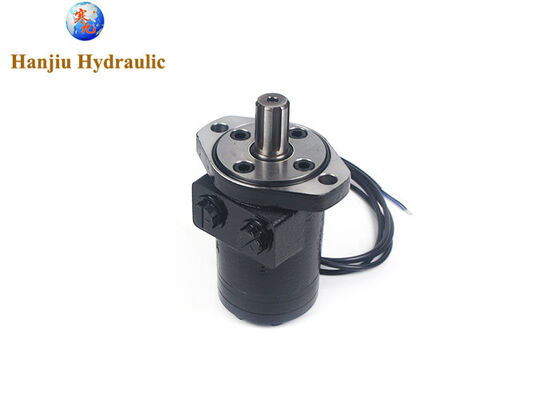

Large Image : Hydraulic Motor for Draper Platform Belt Drive- AXE72734 Orbit motor with speed sensor

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMPH-100

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pieces
Price:	Negotiable
Packaging Details:	Carton Box
Supply Ability:	90000 Pieces One Year

Contact Now

Detailed Product Description

Features:	Low Speed High Torque	Product Name:	Hydraulic Geroler Motor
Material:	Cast Iron	Model Number:	BMPH-100
Displacement:	100CC	Shaft:	SAE 6B Shaft
Highlight:	Hydraulic motor for draper platform , Orbit motor with speed sensor , Belt drive hydraulic motor

Hydraulic Motor for Draper Platform Belt Drive- AXE72734 Orbit motor with speed sensor

► Product details

model type:BMPH-100

displacement:100cc

flange:2-Ø13.5 Rhomb-flange , pilot Ø82.5×2.8

shaft: spline shaft

port threads:7/8-14 O-ring ,7/16-20UNF

► Specification

Type		BMPH 36	BMPH 50	BMPH 80	BMPH 100	BMPH 125	BMPH 160	BMPH 200	BMPH 250	BMPH 315	BMPH 400	BMPH 500
Geometric displacement (cm3 /rev.)		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N·m)	cont.	55	100	146	182	236	302	360	380	375	360	385
	int.	76	128	186	227	290	370	440	460	555	525	560
	peak	96	148	218	264	360	434	540	550	650	680	680
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	5
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	6
Max. pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	11	9	7	6
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	14	14	10.5	9
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	16	14	12
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight (kg)		5.6	5.6	5.7	5.9	6	6.2	6.4	7	6.9	7.4	8

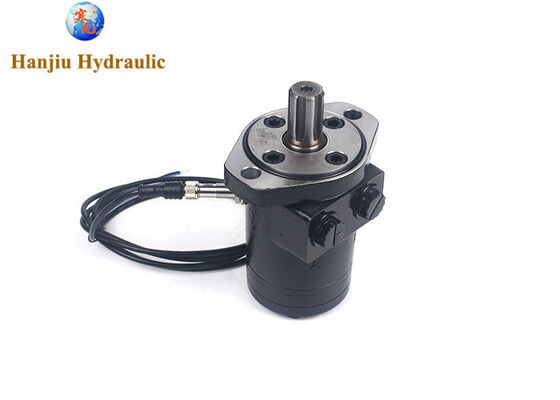

Hydraulic Motor for Draper Platform Belt Drive- AXE72734 Orbit motor with speed sensor 0

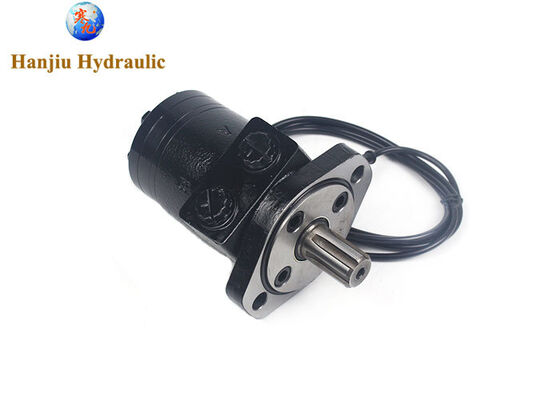

Hydraulic Motor for Draper Platform Belt Drive- AXE72734 Orbit motor with speed sensor 1

OTHER TYPES, YOU CAN CHOOSE FROM THE ORDER CODE

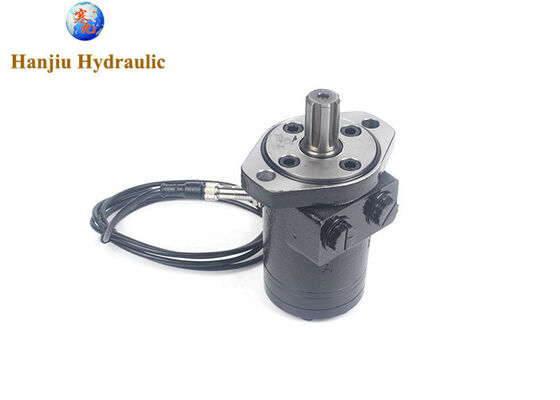

Hydraulic Motor for Draper Platform Belt Drive- AXE72734 Orbit motor with speed sensor 2

645FD - Combine, Platform (Cutting)
645FD Flex Draper Cutting Platform (South America Edition) - PC12605

645FD - Combine, Platform (Cutting)
645FD Flex Draper Platform (Worldwide Edition) - PC12343

735FD - Combine, Platform (Cutting)
735FD Cutting Platform (PIN: 1J0735FDXXX125100- )(Argentina Edition) - PC13450

735FD - Combine, Platform (Cutting)
735FD Dual Guide Cutting Platform (South America Edition) - PC13207

735FD - Combine, Platform (Cutting)
735FD Flex Draper Platform (Worldwide Edition) - PC13491

740FD - Combine, Platform (Cutting)
740FD Dual Guide Cutting Platform (South America Edition) - PC13208

740FD - Combine, Platform (Cutting)
740FD Flex Draper Platform (Worldwide Edition) - PC13492

745FD - Combine, Platform (Cutting)
745FD Cutting Platform (PIN: 1J0745FDXXX125100- )(Argentina Edition) - PC13452

745FD - Combine, Platform (Cutting)
745FD Dual Guide Cutting Platform (South America Edition) - PC13205

745FD - Combine, Platform (Cutting)
745FD Flex Draper Platform (Worldwide Edition) - PC13493

RD35F - Platform
RD35F Rigid Draper Flex Cutter Bar - PC13721

RD40F - Platform
RD40F Rigid Draper Flex Cutter Bar - PC13722

RD45F - Platform
RD45F Rigid Draper Flex Cutter Bar - PC13723
