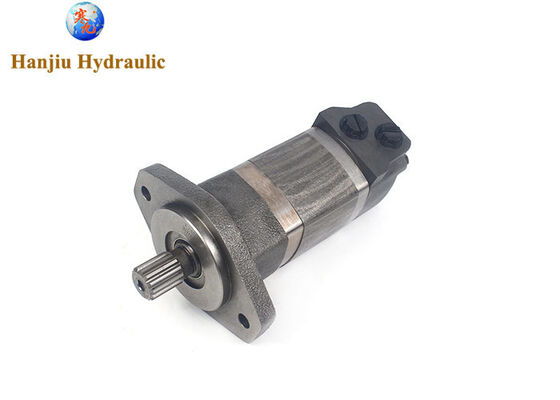

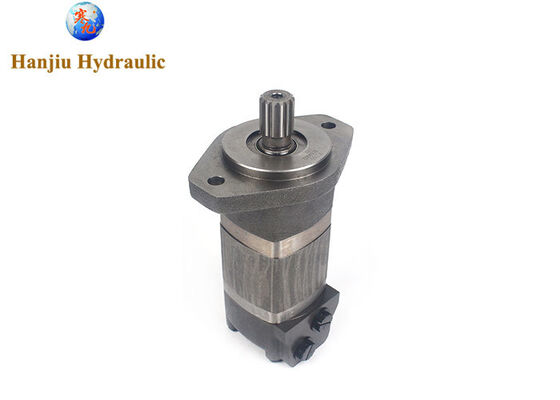

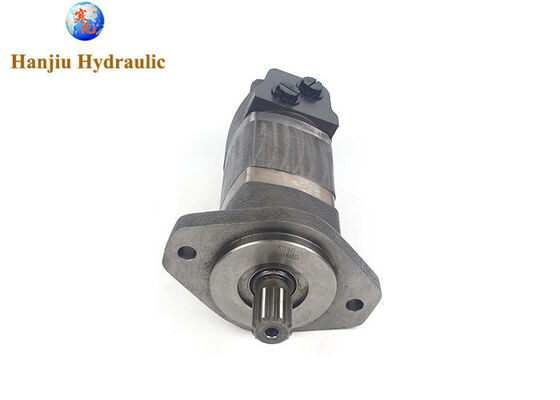

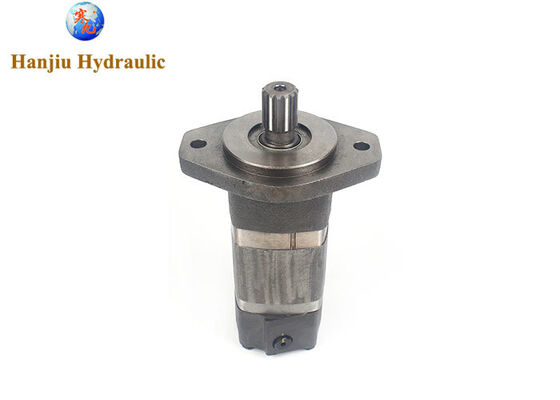

Hydraulic Motor Replaces 104-1215-006 Fits For Eaton Char-Lynn 2000 Series.

Large Image : Hydraulic Motor Replaces 104-1215-006 Fits For Eaton Char-Lynn 2000 Series.

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMK2-400-E2B-FESU

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	90 USD
Packaging Details:	1 pc/ inner carton, 2 pcs/ outer carton, 31x31x17cm, transport with wooden pallet, 650 pcs/ 20GP, 1300 pcs/ 40GP
Delivery Time:	35 - 45 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,Payple
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Type:	Hydraulic Motor	Material:	Cast Iron
Displacement:	400ml/r	Flange:	2 Bolts Standard Type
Shaft Size:	Spline Shaft	Warranty:	12 Months
Highlight:	Hydraulic motor Eaton Char-Lynn 2000 , Orbit hydraulic motor replacement , Hydraulic motor 104-1215-006

Hydraulic Motor Replaces 104-1215-006 Fits For Eaton Char-Lynn 2000 Series.

Brand Name	HANJIU
Matching brand	Eaton Char-Lynn
type code	104-1215-006
Hanjiu code	BMK2-400-E2B-FE-SU
Displacement	24.03 cu-Inch-rev
Pressure Rating	2250 psi
Speed	191 Rpm
Output Torque	6840 Inch-lb
Flow Rate	20 gpm
Port Type	Staggered
Port Size	No 10-SAE
Mounting Type	2-Bolt, SAE-A
Oil Viscosity	100 - 200 SUS
Oil Temperature	180 deg F
Shaft Size	1-1-4 Inch Dia
Shaft Type	Spline shaft

Main specifiction:

Main Specifications:
Type		BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2
		65	80	100	125	160	200	250	315	400	475
		65	80	100	125	160	200	250	315	400	475
Geometric displacement (cm3 /rev.)		65	80	100.9	129.8	156.8	193.4	242.5	304.3	390.8	485
Geometric displacement (cm3 /rev.)		65	80	100.9	129.8	156.8	193.4	242.5	304.3	390.8	485
Max. speed (rpm)	cont.	835	800	742	576	477	385	308	246	191	153
Max. speed (rpm)	int.	990	980	924	720	713	577	462	365	287	230
Max. torque (N·m)	cont.	185	235	295	385	455	540	660	765	775	845
Max. torque (N·m)	int.	245	345	445	560	570	665	820	885	925	930
Max. pressure drop (MPa)	cont.	20.5	21	21	21	20.5	20.5	20.5	21	15.5	12
	int.	27.5	31	31	31	26	26	26	24	17	14
	peak	31	31	31	31	31	31	31	31	20.5	17
Max. flow (L/min)	cont.	55	65	75	75	75	75	75	75	75	75
Max. flow (L/min)	int.	65	80	95	95	115	115	115	115	115	115
Weight (kg)		9.2	9.4	9.7	10	10.2	10.5	11	11.5	12	12.4
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

Hydraulic Motor Replaces 104-1215-006 Fits For Eaton Char-Lynn 2000 Series. 0

Hydraulic Motor Replaces 104-1215-006 Fits For Eaton Char-Lynn 2000 Series. 1

Application:

Swing motor, Brush Cutters & mowers, Harvesting equipment

Hydraulic Motor Replaces 104-1215-006 Fits For Eaton Char-Lynn 2000 Series. 2

HANJIU Company is an innovative hydraulic component manufacturer integrating both manufacturing and sales. The company's core products include hydraulic motor orbitals (BMP/BMR/BMS series, etc.), full hydraulic steering units, and directional control valves, with product lines possessing both depth and breadth in the hydraulic field. HANJIU Technology has an independent R&D department, is equipped with advanced manufacturing equipment, and strictly follows internationally recognized manufacturing standards, implementing refined process control on rotors and stators, seals, and flow distribution structures. The company provides 24-hour online technical support, adheres to the principles of honest operation and professional meticulous service, and its products have been exported in bulk to multiple countries and regions worldwide, earning consistent recognition from numerous cooperative clients. If you need a low-speed, smooth, reliable, and cost-effective hydraulic motor orbital, you are welcome to visit our company website to obtain detailed model parameters and professional power matching solutions.
